產品說明0

※本產品原廠代理從國外進口，有些交期較長，下訂前請詢問！　　

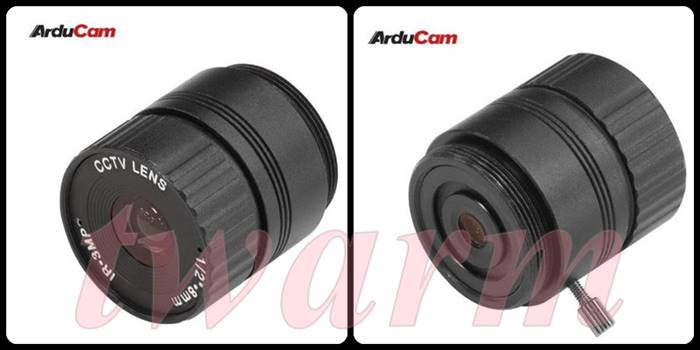

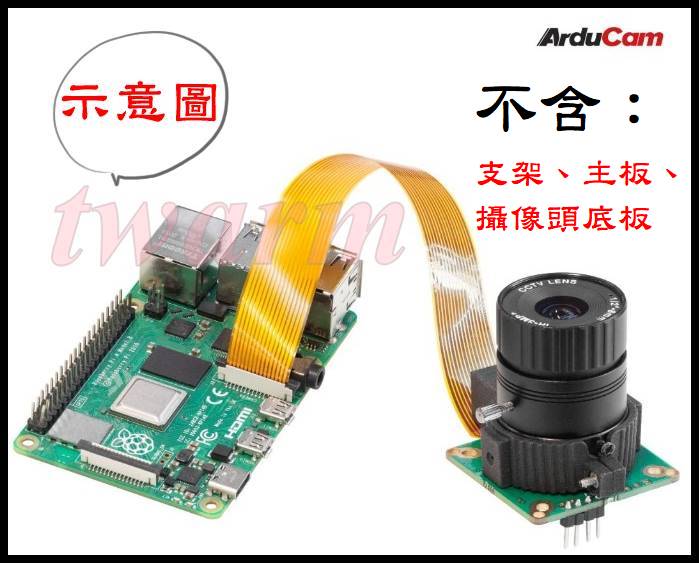

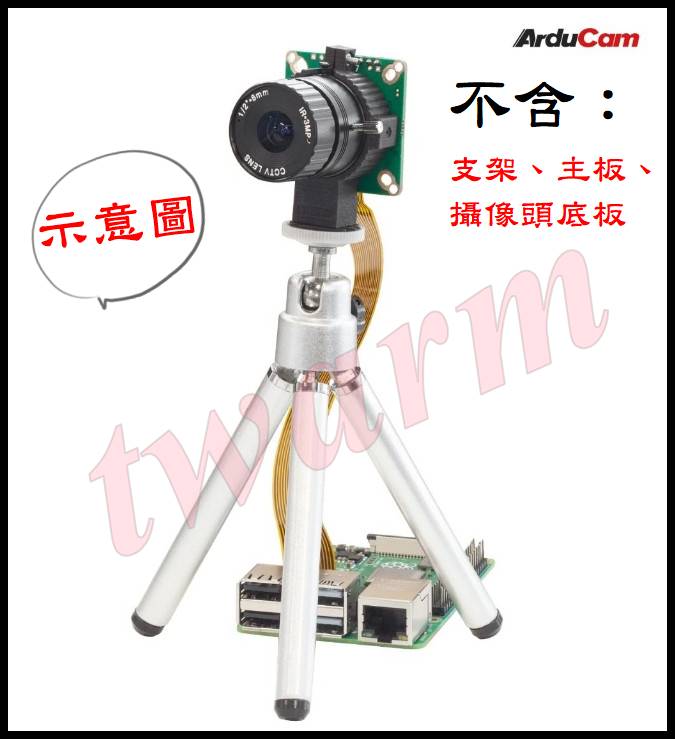

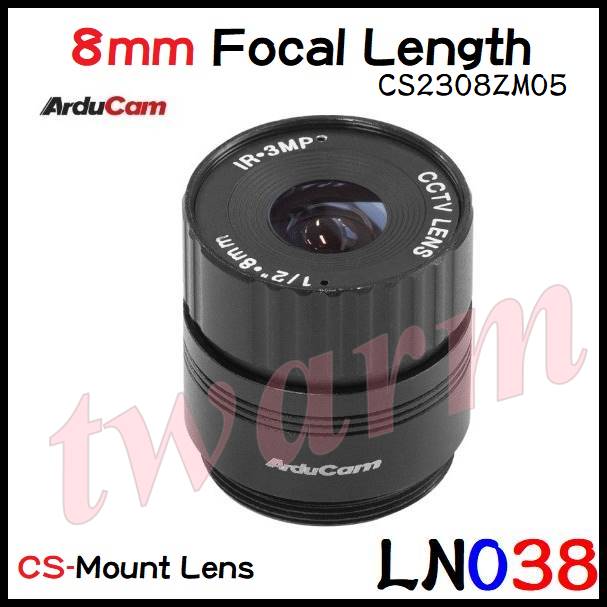

　　Arducam CS-Mount Lens for Raspberry Pi HQ Camera, 8mm Focal Length with Manual Focus

Arducam CS 介面鏡頭，適用於 Raspberry Pi HQ 相機，8 毫米焦距，手動對焦

　　LN038，Arducam CS-Mount 卡口鏡頭 焦距8mm / 適用 樹莓派 Pi HQ Camera

Package Includes：1pcs 1/2.3" CS-Mount 8mm Focal Length lens for Raspberry Pi

　　In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of lenses on your Rpi HQ cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future. We’ve tested this lens among the many other selected on the 12MP RPi HQ Camera. No lens shading, no dark corners, decent image quality, it just works. It is another cost-effective choice that adds up to you Raspberry Pi High Quality Camera Module.

【Lens Specification】：

• Model No: CS2308ZM05

• Optical Format: 1/2.3"

• Focal Length: 8mm 焦距

• Aperture: F1.4

• Field of View (FOV):
  ＊50°(H) on Raspberry Pi High Quality Camera,
  ＊30°(H) on Raspberry Pi V1/V2 Camera

• Focus Type: manual

• Mount: CS mount

• Back Focal Length: 6.50mm 後焦距

• MOD: 0.3m

• Dimension: Φ28×23mm

• Weight: 40g
