※本產品原廠代理從國外進口，有些交期較長，下訂前請詢問！

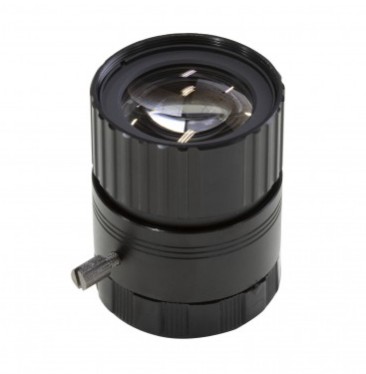

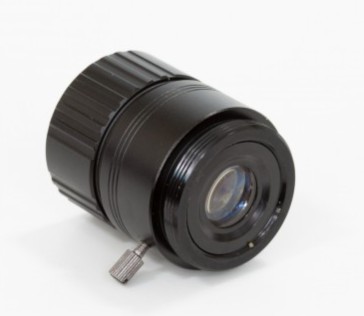

Arducam CS-Mount Lens for Raspberry Pi High Quality Camera, 25mm Focal Length with Manual Focus
適用於Raspberry Pi高質量相機的Arducam CS卡口鏡頭，焦距為25mm，具有手動對焦功能
Item Description:
In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of lenses on your Rpi HQ cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future. We’ve tested this lens among the many other selected on the 12MP RPi HQ Camera. No lens shading, no dark corners, decent image quality, it just works. It is another cost-effective choice that adds up to you Raspberry Pi High Quality Camera Module.
為了滿足與Raspberry Pi高品質相機配合使用的鏡頭的新要求，Arducam選擇並測試了Rpi HQ相機上的各種鏡頭。現在，您可以更輕鬆地獲得所需的最佳鏡頭，並且我們將在不久的將來保持鏡頭清單的增長。我們已經在12MP RPi HQ相機中選擇的其他眾多鏡頭中對此鏡頭進行了測試。沒有鏡頭陰影，沒有黑角，不錯的圖像質量，它可以正常工作。這是另一個具有成本效益的選擇，可為您增加Raspberry Pi高質量相機模塊。

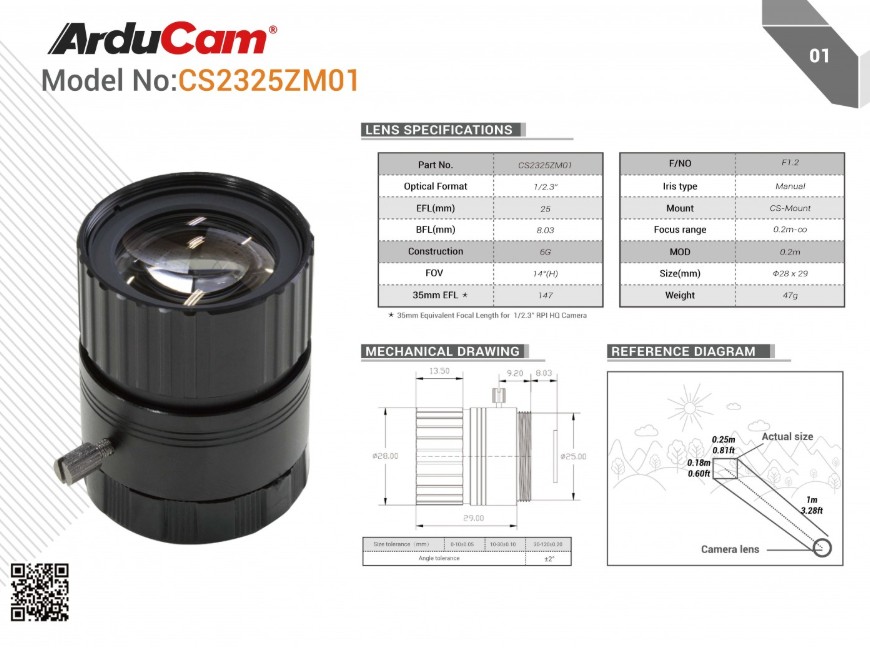

Lens Specification:
- Model No: CS2325ZM01
- Optical Format: 1/2.3"
- Focal Length: 25mm
- Aperture: F1.2
- Field of View (FOV): 14°(H)
- Focus Type: manual
- Mount: CS mount
- Back Focal Length: 8.03mm
- MOD: 0.2m
- Dimension: Φ28×29mm
- Weight: 47g
- 型號：CS2325ZM01
- 光學格式：1 / 2.3“
- 焦距：25mm
- 光圈：F1.2
- 視場角（FOV）：14°（H）
- 焦點類型：手動
- 安裝：CS安裝
- 後焦距：8.03mm
- MOD：0.2m
- 尺寸：Φ28×29mm
- 重量：47克
Package Includes:
- 1pcs 1/2.3" CS-Mount 25mm Focal Length lens for Raspberry Pi
相關文件
產品參數

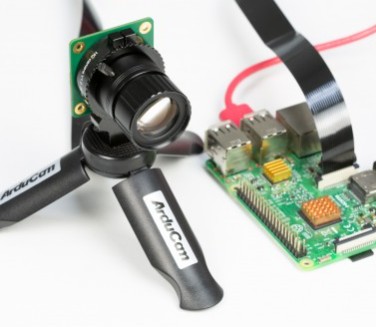

＞安裝鏡頭效果展示＜
安裝到Raspberry Pi HQ Camera上，須去掉 C/CS連接環
