 Item Description:

In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of CS-mount and C-mount optimal lenses from long focus to wide angle for shooting on your Rpi HQ cameras. It’s now much easier for you to get the best lens you’ll need, and we will keep the lens list growing in the near future.

為了滿足與Raspberry Pi高質量相機配合使用的鏡頭的新要求，Arducam選擇並測試了從長焦到廣角的各種CS卡口和C卡口最佳鏡頭，以便在Rpi HQ相機上拍攝。現在，您可以更輕鬆地獲得所需的最佳鏡頭，並且我們將在不久的將來保持鏡頭清單的增長。

Features:

• It Just Works – We’ve tested this lens among the many other selected on the 12MP RPi HQ Camera. No lens shading, no dark corners, decent image quality, it just works.
• The Wise Alternative – Another cost-effective choice that adds up to you Raspberry Pi High Quality Camera Module, with 6mm focal length and manual focus
• Qualified Arducam – Arducam has been selecting and testing CS lenses on the Raspberry Pi cameras since the V1 camera era. Check B0032 if you want a 5MP Pi camera with CS Lens, and contact us to customized 8MP Pi cameras with CS lenses.
• Other Specs – 65 degrees Horizontal Field of View (HFoV), 1/2.3″ Lens Optical Format, F/1.4, Dimension: Φ28×26.58mm, Weight: 29g

Lens Specification:

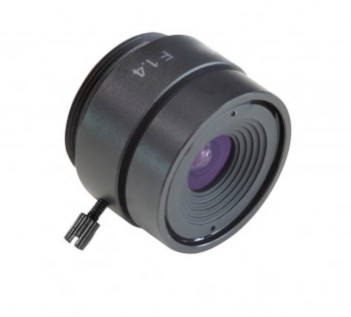

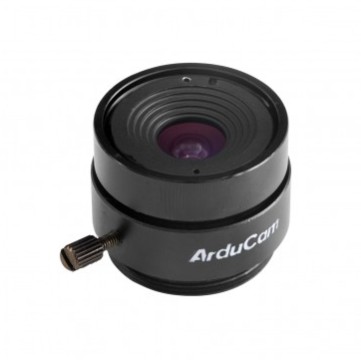

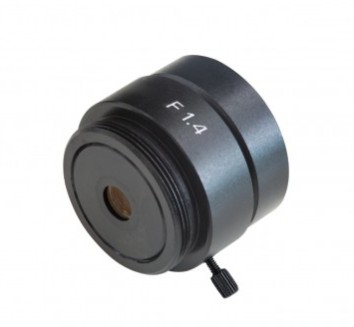

• Model No: CS2706ZM07
• Optical Format: 1/2.3”
• Focal Length: 6mm
• Aperture (F): F1.4
• Field of View (FOV): 65° (H)
• Mount: CS-Mount
• Back Focal Length: 12.5mm
• MOD: 0.1m
• Dimension: Φ28×26.58mm
• Weight: 29g

• 型號：CS2706ZM07
• 光學格式：1 / 2.3英寸
• 焦距：6mm
• 光圈（F）：F1.4
• 視場角（FOV）：65°（H）
• 安裝：CS卡口
• 後焦距：12.5mm
• MOD：0.1m
• 尺寸：Φ28×26.58mm
• 重量：29克

Package Includes:

• 1pcs 1/2.3″ CS-mount CS2706ZM07 6mm Focal Length Camera Lens
