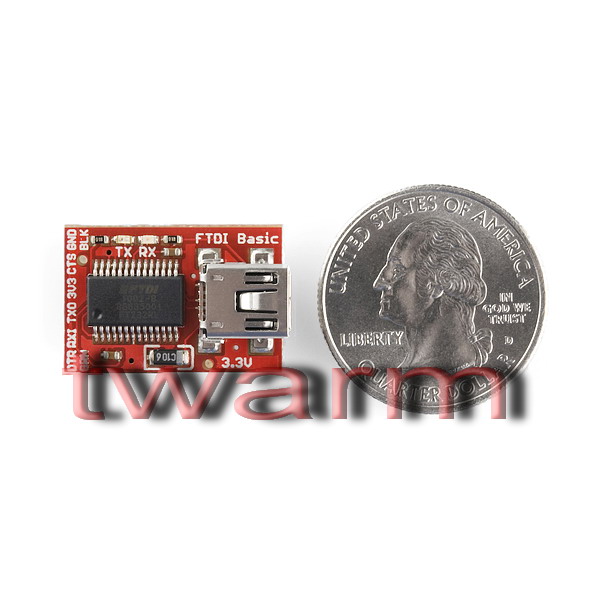

　　This is the newest revision of our FTDI Basic. We now use a SMD 6-pin header on the bottom, which makes it smaller and more compact. Functionality has remained the same.／這是我們FTDI Basic的最新版本。我們現在在底部使用了一個SMD 6針排針，這使得它更小更緊湊。功能保持不變。

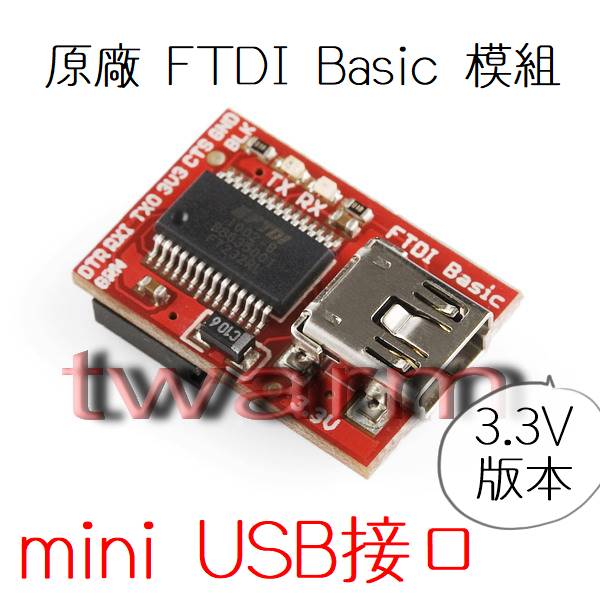

　　This is a basic breakout board for the FTDI FT232RL USB to serial IC. The pinout of this board matches the FTDI cable to work with official Arduino and cloned 3.3V Arduino boards. It can also be used for general serial applications. The major difference with this board is that it brings out the DTR pin as opposed to the RTS pin of the FTDI cable. The DTR pin allows an Arduino target to auto-reset when a new Sketch is downloaded. This is a really nice feature to have and allows a sketch to be downloaded without having to hit the reset button. This board will auto reset any Arduino board that has the reset pin brought out to a 6-pin connector.／這是 FTDI FT232RL USB 轉串行 IC 的基本分線板。該板的引出線與 FTDI 電纜相匹配，可與官方 Arduino 和克隆的 3.3V Arduino 板配合使用。它也可以用於一般的串行應用。該板的主要區別在於它引出了 DTR 引腳，而不是 FTDI 電纜的 RTS 引腳。DTR 引腳允許 Arduino 目標在下載新草圖時自動重置。這是一個非常好的功能，它允許在不點擊重置按鈕的情況下下載草圖。該板將自動復位任何將復位引腳引出到 6 針連接器的 Arduino 板。

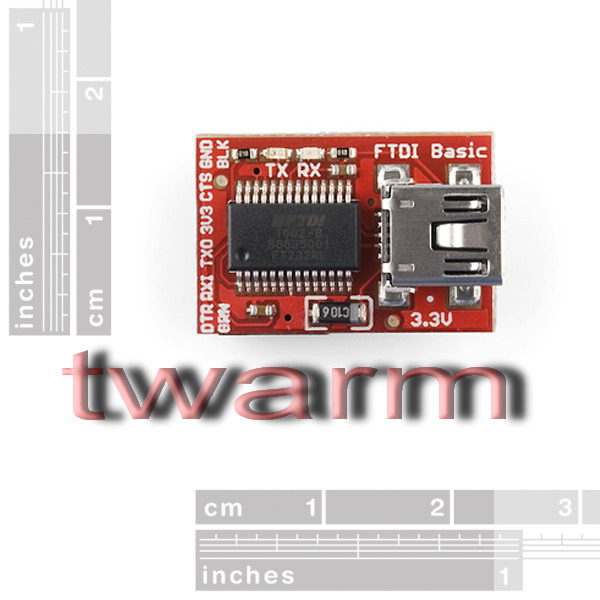

　　The pins labeled BLK and GRN correspond to the colored wires on the FTDI cable. The black wire on the FTDI cable is GND, green is DTR. Use these BLK and GRN pins to align the FTDI basic board with your Arduino target.／
標記為 BLK 和 GRN 的引腳對應於 FTDI 電纜上的彩色電線。
FTDI 電纜上的黑線是 GND，綠色是 DTR。
使用這些 BLK 和 GRN 引腳將 FTDI 基本板與您的 Arduino 目標對齊。

　　There are pros and cons to the FTDI Cable vs the FTDI Basic. This board has TX and RX LEDs that allow you to actually see serial traffic on the LEDs to verify if the board is working, but this board requires a Mini-B cable. The FTDI Cable is well protected against the elements, but is large and cannot be embedded into a project as easily. The FTDI Basic uses DTR to cause a hardware reset where the FTDI cable uses the RTS signal.／FTDI 電纜與FTDI基本電纜各有利弊。此主機板具有 TX 和 RX LED，可讓您實際查看 LED 上的串行通信量，以驗證主機板是否正常工作，但此主機板需要 Mini-B 電纜。FTDI 電纜可以很好地抵禦元素，但體積很大，無法輕鬆嵌入到專案中。FTDI Basic 使用 DTR 導致硬體重置，其中 FTDI 電纜使用 RTS 信號。

　　This board was designed to decrease the cost of Arduino development and increase ease of use (the auto-reset feature rocks!). Our Arduino Pro and LilyPad boards use this type of connector.／該板旨在降低 Arduino 開發成本並提高易用性（自動重置功能震撼！我們的Arduino Pro和LilyPad板使用這種類型的連接器。

Note: We know a lot of you prefer microUSB over miniUSB. Never fear, we've got you covered! Check out our FT231X Breakout for your micro FTDI needs!／注意：我們知道你們中的很多人更喜歡microUSB，而不是miniUSB。別擔心，我們為您提供保障！查看我們的FT231X突破，滿足您的微型FTDI需求！
