新款B0183，Arducam IMX219 低失真 M12 Camera 攝像頭模組，適用NVIDIA Jetson Nano、Orin系列開發板
＊Arducam IMX219 Low Distortion M12 Mount Camera Module for NVIDIA Jetson Nano/Xavier NX/AGX Orin/Orin Nano/Orin NX
ＰＳ．本相機鏡頭不可更換，如需更換鏡頭，下單前請先詢問!!!
【Package Including／清單】
- 1pcs Arducam IMX219 Low Distortion Camera Module for NVIDIA Jetson Board
- 1pcs 1.0mm pitch 15cm 15pin-22Pin FPC cable
- 1pcs 0.5mm pitch 15cm 22pin-22Pin FPC cable

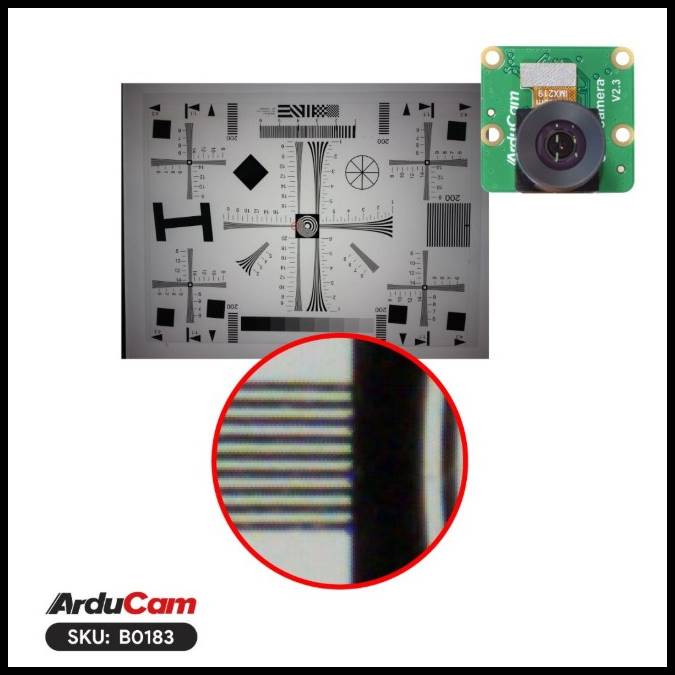

This Arducam IMX219 camera module is mainly designed for NVIDIA®Jetson Board. The highlight of this camera is its very low distortion (<3%) of the lens.／這款相機的亮點在於其鏡頭變形率極低（<3%）。
Currently, NVIDIA official has released the NVIDIA Jetson Orin series developer board. Based on it, we have also adapted the camera into NVIDIA Jetson Orin kernel.
The lens on this camera is not interchangeable, if you need to replace the lens, please contact sales in advance!／本相機鏡頭不可更換，如需更換鏡頭，請提前聯絡銷售！
★KERNEL CAMERA DRIVER USED
This camera relies on kernel drivers to work – one kernel version, one camera driver. Note on supported Nvidia Jetson Boards and Jetpack versions, please refer to Supported JetPack Version for Different NVIDIA Jetson Platforms to ensure compatibility.
★ SUPPORTED PLATFORM DISCLAIMER
This camera is specifically designed for the official NVIDIA® Jetson™ Developer Kit by default and does not support third-party carrier boards.
【Features／特徵】：
- Shutter Type： Rolling Shutter
- Color Type： Color 彩色相機
- IR Sensitivity： Visible light, Integral IR Filter／紅外靈敏度：可見光，集成紅外濾光片
- Interface： MIPI
- Format： RAW Bayer
- Platform Support： Jetson Nano
【Specification／規格】：
〔Camera〕攝像頭模組：
- Image Sensor：IMX219 8MP
- Video Modes：
- NVIDIA Jetson Orin NX/Orin Nano/AGX Orin：
3280x2464@21fps, 3280x1848@28fps,
1920x1080@30fps, 1640x1232@30fps, 1280x720@60fps
- Sensor Resolution：3280 × 2464 pixels
- Sensor image area：3.68 x 2.76 mm (4.6 mm diagonal)
- Pixel Size：1.12 µm x 1.12 µm
- Optical Size：1/4"
- IR Sensitivity： Integral IR-cut Filter, visible light only／整合紅外線截止濾光片，僅可見光
〔Lens〕鏡頭：
- Focus Type：Manual Focus 手動對焦
- Focal Length：2.8mm 對焦
- F.NO：F2.8 光圈
- Field of View(FOV)：88°(D) × 75°(H)水平 × 60°(V)
- Lens Mount：M12 Mount
- Distortion 失真：<3%
〔Electrical & Mechanical〕板子：
- Camera Board Size：24mm x 25mm尺寸
- Peaking Current：300mA
【Applications／應用】：
- Unmanned Aerial Vehicles (UAVs)／無人駕駛飛行器
- Building Drones／建造無人機
- Autonomous Robotic Systems／自主機器人系統
- Mobile Medical Imaging／移動醫學影像
- intelligent Video Analytics (IVA)／智能視頻分析
