Quickstart:

1.Solder stackable headers to the EL Escudo Dos.
2.Plug the EL Escudo Dos into the Arduino of your choice.
3.Attach an EL inverter to the "DC TO INVERTER" and "AC FROM INVERTER" connectors on the EL Escudo Dos. (You may need to configure the EL Escudo to ensure that the voltage coming from the "DC TO INVERTER" connector is appropriate for your inverter, see below.)
4.Attach your EL wire / tape / panels to the "A " through "H" output connectors.
5.Load the example sketch or your own code onto the Arduino.

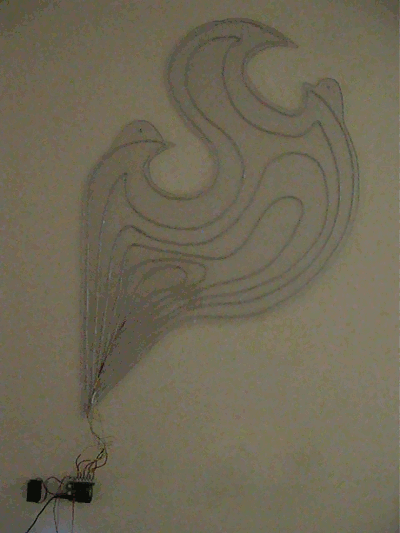

6.Glow

測試代碼：

// Test sketch for El Escudo Dos  // Turn each EL channel (AH) on in sequence and repeat  // Mike Grusin, SparkFun Electronics void setup() {                   // The EL channels are on pins 2 through 9    // Initialize the pins as outputs    pinMode(2, OUTPUT); // channel A     pinMode(3, OUTPUT); // channel B      pinMode(4, OUTPUT ); // channel C    pinMode(5, OUTPUT); // channel D       pinMode(6, OUTPUT); // channel E    pinMode(7, OUTPUT); // channel F    pinMode(8, OUTPUT); // channel G    pinMode(9, OUTPUT); // channel H    // We also have two status LEDs, pin 10 on the Escudo,    // and pin 13 on the Arduino itself    pinMode(10, OUTPUT);        pinMode(13, OUTPUT);     } void loop()  {    int x,status;   // Step through all eight EL channels (pins 2 through 9)   for (x=2; x<=9; x++)   {     digitalWrite(x, HIGH); // turn the EL channel on     delay(100); // wait for 1/10 second     digitalWrite(x, LOW); // turn the EL channel off        digitalWrite(10, status); // blink both status LEDs      digitalWrite(13, status);      status = !status;    }  }
