Arducam for Raspberry Pi Zero Camera Module Wide Angle 120°, 1/4 Inch 5MP OV5647 Spy Camera with Flex Cable for Pi Zero and Pi Compute Module (NoIR)
Arducam 適用於 Raspberry Pi 零攝像頭模塊廣角 120°、1/4 英寸 5MP OV5647 間諜攝像頭，帶有用於 Pi Zero 和 Pi 計算模塊的柔性電纜 (NoIR)
型號：B006604N，Arducam原廠 5MP像素 OV5647 NoIR攝像頭 廣角 120° Pi Zero CM用
【特徵】
- 高清視頻攝像頭樹莓派適用於 Raspberry Pi Zero、CM3、CM4
- 5MPixel傳感器豪威OV5647傳感器在固定焦點透鏡
- 不帶集成紅外濾光片／without IR filter.
- 視角：120度廣角
視場：2.0×1.33米在2m
全畫幅單反鏡頭等效為35mm
- 定焦：1米到無窮遠
- 靜態圖片分辨率：2592 x1944
- 最大視頻分辨率：1080p
- 最大幀速：30幀

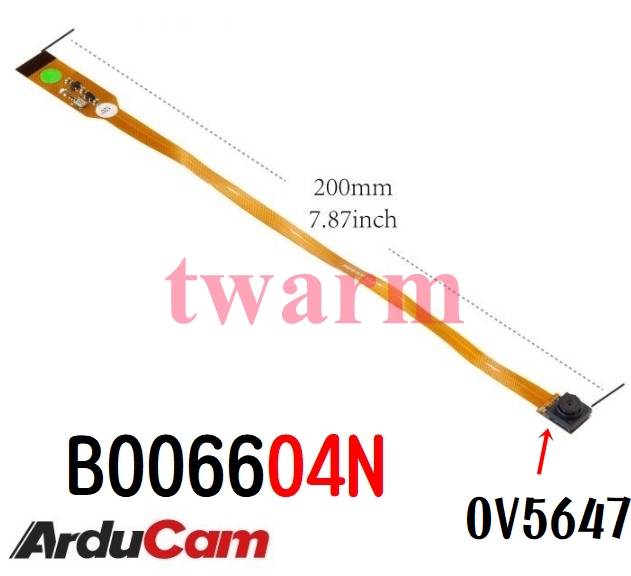

- 尺寸：200mm X 11.5 mm的柔性電纜，頸寬為6mm
- ＰＳ．OV5647 CAMERA 鏡頭8.5mm
【Feature】特徵:
- Angle of View: 120 degrees diagonal
- Fixed Focus: 1 m to infinity
- Max video resolution: 1080p
- Max frame rate: 30fps
- Dimension: 200mm × 11.5mm × 5.5mm.
【描述】
n order to meet the increasing need of Raspberry Pi Zero compatible camera modules, the Arducam team now released another add-on spy camera module which is fully compatible with Raspberry Pi Zero and Pi compute module.
為了滿足對Raspberry Pi Zero兼容相機模塊日益增長的需求，Arducam團隊現在發布了另一個與Raspberry Pi Zero和Pi計算模塊完全兼容的附加間諜相機模塊。
The board itself is tiny, at around 200mm x 11.5mm. The neck width of the camera module is 6mm, this highlight making it perfect for endoscope, spy surveillance or other applications where size and image quality are important. It connects to Raspberry Pi Zero by way of a short ribbon cable. The camera is connected to the BCM2835 processor on the Pi Zero via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor.
電路板本身很小，大約 200 毫米 x 11.5 毫米。攝像頭模塊的頸部寬度為 6 毫米，這一亮點使其非常適合內窺鏡、間諜監視或其他尺寸和圖像質量很重要的應用。它通過短帶狀電纜連接到 Raspberry Pi Zero。相機通過 CSI 總線連接到 Pi Zero 上的 BCM2835 處理器，CSI 總線是一種更高帶寬的鏈路，可將像素數據從相機傳回處理器。
This bus travels along the ribbon cable that attaches the camera board to the Pi. The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30. 720p60 and 640x480p60/90 video. It attaches to Raspberry Pi Zero by way of the small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data.
該總線沿著將相機板連接到 Pi 的帶狀電纜傳輸。傳感器本身俱有 5 兆像素的原始分辨率，並帶有固定焦距鏡頭。在靜態圖像方面，該相機能夠拍攝 2592 x 1944 像素的靜態圖像，並且還支持 1080p30。720p60 和 640x480p60/90 視頻。它通過板子上表面的小插座連接到 Raspberry Pi Zero。該接口使用專用的 CSI 接口，該接口專為連接攝像機而設計。CSI 總線具有極高的數據速率，並且專門傳輸像素數據。
