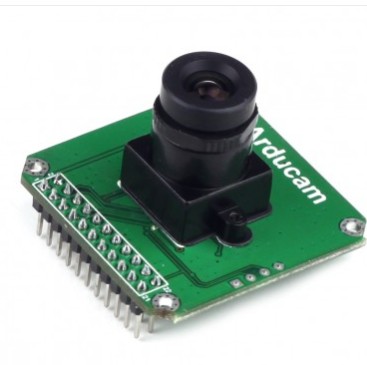

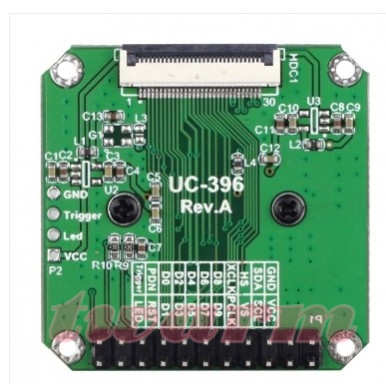

Arducam CMOS MT9V034 1/3-Inch 0.36MP Color Camera Module
Item Description:
The MT9V034 is a 1/3-inch color wide-VGA format CMOS active-pixel digital image sensor with global shutter and high dynamic range (HDR) operation. The sensor has specifically been designed to support the demanding interior and exterior surveillance imaging needs, which makes this part ideal for a wide variety of imaging applications in real world environments.
Note:
This camera module can be used together with Arducam USB shield for Windows, Linux and Raspberry Pi.
Please check the following link:
http://twarm.com/commerce/product_info.php?products_id=2565
1/3" 0.36MP Wide VGA (752 x 480) CMOS color global shutter camera module MT9V034.
High frame rate, high dynamic range, good sensitivity for machine vision with external trigger.
Feature
- 1/3" optical format
- 0.36MP 752 x 480 MT9V034 global shutter sensor
- 6.0 x 6.0 um Pixel size
- 60fps at full resolution
- 4.8V/lux-sec responsivity
- 55db linear, 110db HDR dynamic range
- single 3.3V power input
- Default M12 mount 6mm LS-6020 lens
Application
- Security
- High dynamic range imaging
- Unattended surveillance
- Stereo vision
- Video as input
- Machine vision
- Automation
Package Including
- 1 pcs Arducam CMOS MT9V034 1/3-Inch 0.36MP color Camera Module
Download
MT9V034 Camera Breakout Datasheet
MT9V034 Camera Breakout Application Note
Arducam USB Camera Shield User Guide
MT9V034 Camera Breakout Software Guide
