產品說明1
※本產品原廠代理從國外進口，有些交期較長，下訂前請詢問！
ROCK 5B 專用

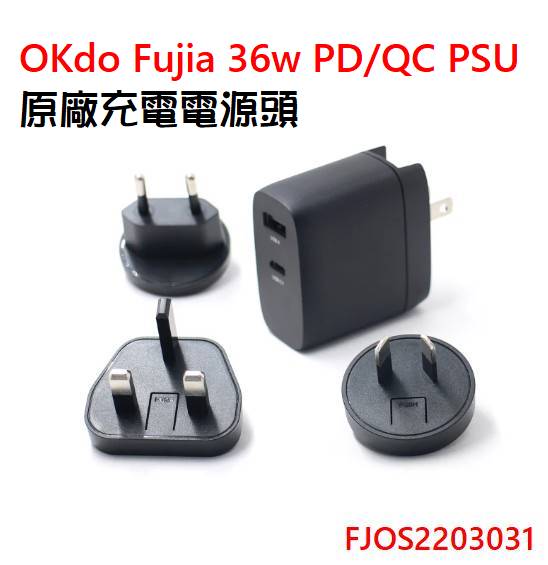

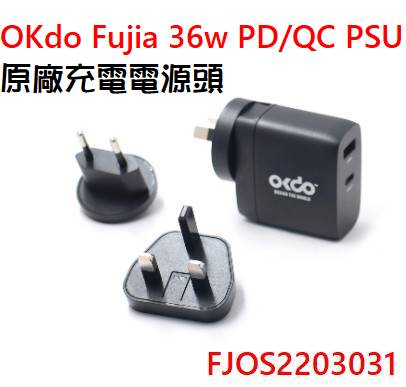

OKdo Fujia 36w PD/QC PSU 原廠USB充電電源頭，3種國際接頭可換（FJOS2203031）,不含線
OKdo Fujia 36w PD/QC PSU原廠充電電源頭【USB-A、Type-C 兩用 】FJOS2203031
Okdo 36 W PD + QC Multihead PSU Plug In Power Supply 5→20V dc Output, 1.75→3A Output
USB-A + type-C 兩用
5V~20V輸出、1.75A~3A輸出
This OKdo 36W Power Supply (PSU) provides two output ports for the widest compatibility with today’s electronics. The PSU is compatible with the USB Power Delivery (PD) and Qualcomm® Quick Charge™ (QC) standards to offer fast charging capabilities while remaining backward compatible with legacy 5V USB products.
這款 OKdo 36W 電源 (PSU) 提供兩個輸出端口，可與當今的電子產品實現最廣泛的兼容性。 PSU 兼容 USB Power Delivery (PD) 和 Qualcomm® Quick Charge™ (QC) 標準，可提供快速充電功能，同時保持與傳統 5V USB 產品的向後兼容。
【Benefits of the OKdo 36W PSU】
Ideal for a range of electronics including SBCs - It's an ideal solution for charging and powering mobile phones, laptops, power monitors, Single Board Computers (SBC), power banks, and more.
Interchangeable international plug heads - This PSU comes with an inbuilt USA 2-pin plug and three interchangeable international heads for use in the UK, Europe, and Australia.／ 可互換的國際插頭頭 - 此 PSU 帶有一個內置的美國 2 針插頭和三個可在英國、歐洲和澳大利亞使用的國際插頭。
USB A and USB C inputs - Allows users to continue using existing cables while migrating to type-C to type-C cables.／USB A 和 USB C 輸入 - 允許用戶繼續使用現有電纜，同時遷移到 type-C 到 type-C 電纜。
【Power capabilities of the OKdo 36W PSU】
- USB PD and QC compatible／USB PD 和 QC 兼容
- USB-A port output supports 5.0V 3A, 9.0V 2A, 12V 1.5A
- USB-C port output supports 5.0V 3A, 9.0V 3A, 12V 3A, 15V 3A, 20V 2.25A
- Total 36W max output power／總計 36W 最大輸出功率
- Efficiency level VI
【Technical specifications】
- Output voltage range: 5V - 20V as required
- Rated output power: 36W
- Input voltage: Rated: 100 - 240 Vac, Variable 90V - 264Vac
- Frequency: 50/60Hz, tolerance 47-63Hz
- Operating temperature: 0˚C ∼ +35˚C full load, normal operation
- Dimensions: 52.8mm x 57mm x 30.6mm
規格
| 屬性 | 值 |
| Plug Type | Interchangeable |
| Output Voltage | 5→20V dc |
| Output Current | 1.75→3A |
| Output Connector | USB Type A, USB Type C |
| Number of Outputs | 2 |
| Power Rating | 36 W PD + QC Multihead PSU |
| Type | Power Supply |
