Introduction

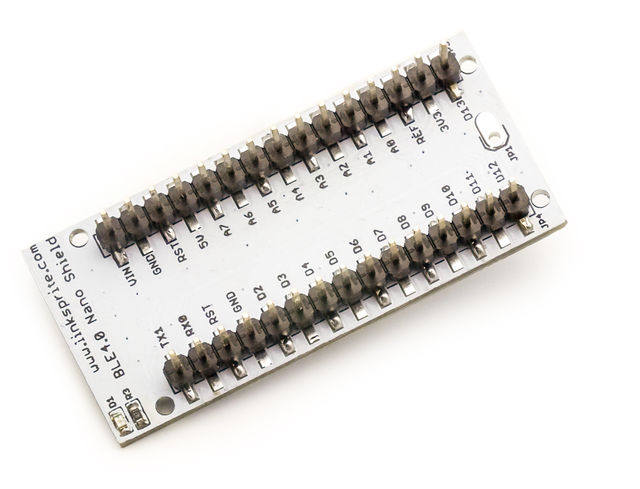

BLE4.0 Nano Shield is design for Arduino Nano which is based on TICC2541. TICC2541 integrated AT instruction set, it's very easy to use can BLE4.0 Nano Shield uses BLE4.0 module integrates AT command set ,very simple and quick, greatly reducing your development cycle.
The BLE4.0 nano Shield for Arduino Nano integrates an openhapp Serial Bluetooth BLE module HM-10. It can be easily used with Arduino Nano for transparent wireless serial communication. You can choose two pins from Arduino D0 to D3 as Software Serial Ports to communicate with Bluetooth Shield (D0 and D1 is Hardware Serial Port).
Support Central and Peripheral mode switch, modify by AT command.
Support Remote control mode, remote device can control PIO pin or modify settings by AT commander when Connected. (such as Iphone4s/5 ipad, Note2 etc.)
The Bluetooth UART serial Converter Module can easily transfer the UART data through the wireless Bluetooth, without complex PCB layout or deep knowledge in the Bluetooth software stack, you can combine this bluetooth module with your system:
MCU, ARM or DSP systems. SOC systems. Personal Digital Assistants (PDAs) Computer Accessories Other systems your want to use under bluetooth functions.
Features
- CC2541 Bluetooth Chip Solution
- Fully Qualified Bluetooth V4.0 Ble
- Full Speed Bluetooth Operation with Full Piconet Support and Scatternet Support
- Increadible samll size with 3.3V input, and RoHS Compliant
- UART interface and with baudrate setup function
- iBeacon
