產品說明0
※本產品原廠代理從國外進口，有些交期較長，下訂前請詢問！

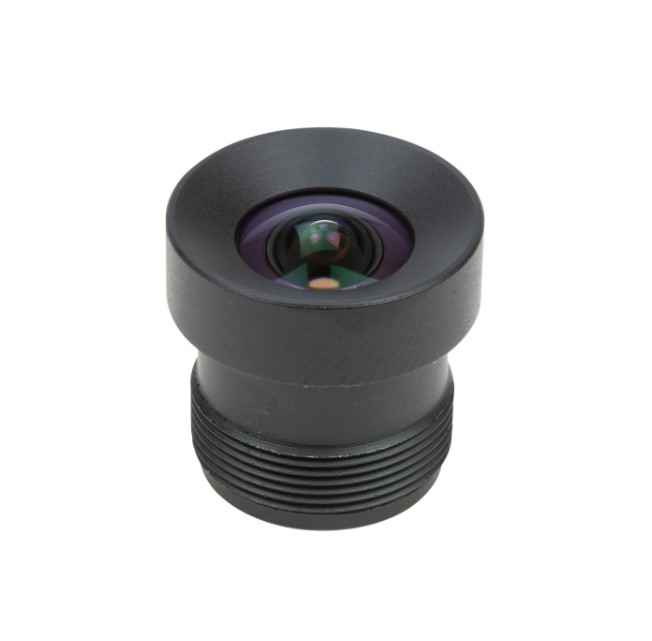

Arducam 1/2.7" M12 Mount 2.8mm Focal Length Low Distortion Camera Lens M27280M07S
Arducam 1 / 2.7“ M12固定座2.8mm焦距低失真相機鏡頭M27280M07S
Features:
- Arducam Lens M27280M07S featuring low distortion
- Module number:M27280M07S
- Optical Format: 1/2.7”
- Distortion :<1%
- Effective Focal Length: 2.8mm
- 35mm equivalent focal length: 30.27mm
- FOV on 1/2.7”sensor(D/H/V):125°/110°/85°
- FOV on 1/4”RPi Camera: 75°
- F/NO: 2.8
- Mount: M12
- Length Holder Height: 7mm
- Size: 14mm x15.6mm
- Weight:4g
- Arducam鏡頭M27280M07S具有低失真
- 模組編號：M27280M07S
- 光學格式：1 / 2.7英寸
- 失真度：<1％
- 有效焦距：2.8mm
- 35mm等效焦距：30.27mm
- 1 / 2.7英寸傳感器上的視場角（D / H / V）：125°/ 110°/ 85°
- 1/4” RPi攝像機上的視野：75°
- 傳真/否：2.8
- 支架：M12
- 燈架高度：7mm
- 尺寸：14mm x15.6mm
- 重量：4g
Package Includes:
- 1pcs Arducam 1/2.7" M12 Mount 2.8mm Focal Length Low Distortion Camera Lens M27280M07S
1個Arducam 1 / 2.7英寸M12固定座2.8mm焦距低失真相機鏡頭M27280M07S
Note:
- Lens holder NOT included, you could find holder options following.
- Typically lenses with a larger Field of View will require shorter holders, and that means you need to change the lens holder if the lens does not focus at all.
- 不包括鏡架，您可以在下面找到鏡架選項。
- 通常，具有較大視場的鏡頭需要較短的鏡架，這意味著如果鏡頭根本無法對焦，則需要更換鏡架。
