產品說明0
※本產品原廠代理從國外進口，有些交期較長，下訂前請詢問！

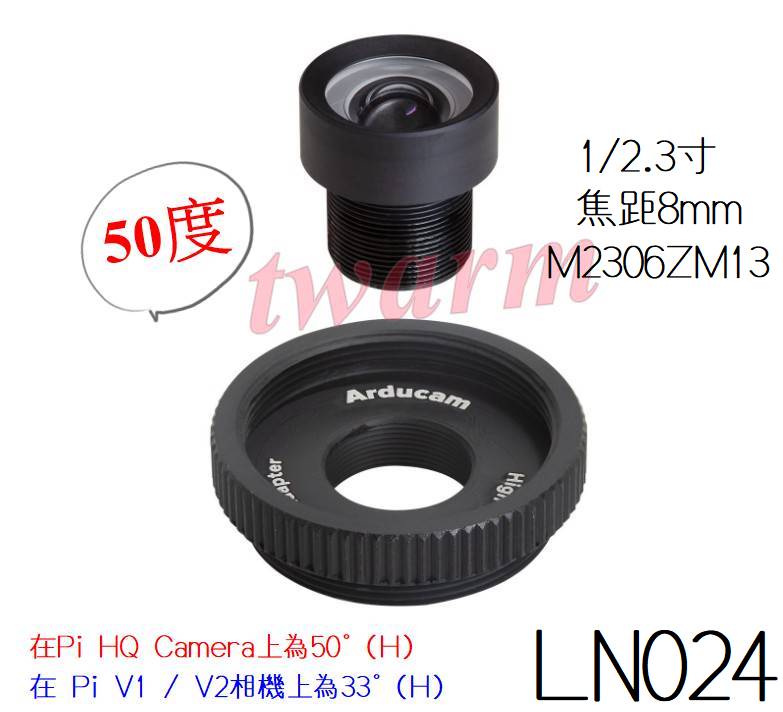

Arducam 50 Degree 1/2.3" M12 Lens with Lens Adapter for Raspberry Pi High Quality Camera
Arducam 50度1 / 2.3英寸M12鏡頭，帶用於Raspberry Pi高質量相機的鏡頭適配器
型號：LN024，Arducam 1/2.3寸 M12鏡頭 焦距8mm 50度－M2306ZM13，適用Pi HQ Camera
Package Includes:
- 1pcs 1/2.3″ M12 50 degree camera Lens
- 1pcs M12 lens adapter
In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of M12-mount lenses from long focus to wide angle for shooting on your Rpi HQ cameras. It’s now much easier for you to get the best lens you’ll need, and we will keep the lens list growing in the near future.／為了滿足鏡頭與 Raspberry Pi 高品質相機配合使用的新需求，Arducam 選擇並測試了從長焦到廣角的各種 M12 卡口鏡頭，用於在您的 Rpi HQ 相機上拍攝。現在，您可以更輕鬆地獲得所需的最佳鏡頭，我們將在不久的將來保持鏡頭列表的增長。
If you want to grab all the available S-mount lenses for the HQ camera, Arducam has also got a 6-in-1 M12 lens bundle here.／如果您想為 HQ相機獲取所有可用的 S-mount 鏡頭，Arducam 還提供了 6 合 1 M12 鏡頭包（選LK003）。
Lens Specification:
- Model No: M2306ZM13
- Optical Format: 1/2.3”
- Focal Length:8mm焦距
- Aperture: F2
- Field of View (FOV):
*50° (H) on Raspberry Pi High Quality Camera,
*33°(H) on Raspberry Pi V1/V2 Camera - Mount: M12 mount
- Back Focal Length: 7.56mm 後焦距
- MOD: 0.3m
- Distortion: <1%
- Dimension: Φ16×16.41mm
- Weight: 6g
- IR Sensitivity: sensitive to visible light, with 650nm IR filter
相關資訊
其他具有不同 FoV 的 Arducam S 卡口鏡頭
- 鏡頭 70 度： 20° HQ 相機鏡頭（LN036）、 50° HQ 相機鏡頭（LN024）、 70° HQ 相機鏡頭（LN023）。
- 廣角和魚眼鏡頭： 90° HQ 相機鏡頭（LN033）、 新140° HQ 相機鏡頭（LN056）、 180° HQ 相機鏡頭（LN031）。
