產品說明1
※本產品原廠代理從國外進口，有些交期較長，下訂前請詢問！
Arducam Telephoto 20 Degree 1/2.3" M12 Lens with Lens Adapter for Raspberry Pi High Quality Camera
Arducam 長焦 20 度 1/2.3" M12 鏡頭，帶鏡頭適配器，適用於 Raspberry Pi 高品質相機
型號：LN036，Arducam 1/2.3寸 M12鏡頭 焦距25mm／長焦20度－ M2025ZM02／適用 Pi HQ Camera
＊20° (H) on Raspberry Pi High Quality Camera,
＊8° (H) on Raspberry Pi V1/V2 Camera,

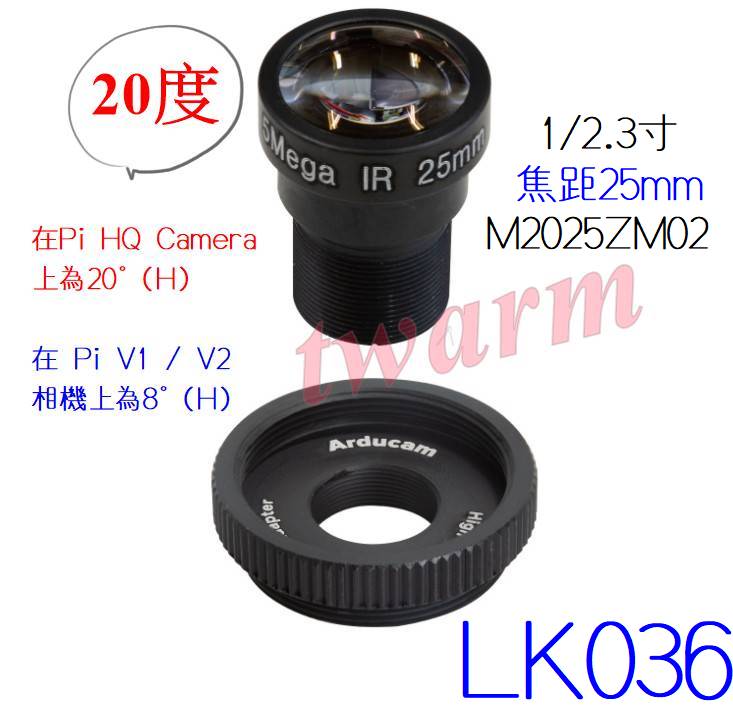

Package Includes:
- 1pcs 1/2.3" M12 20 degree camera Lens
- 1pcs M12 lens adapter
Item Description:
In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of M12-mount lenses from long focus to wide angle for shooting on your Rpi HQ cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future.／為了滿足鏡頭與 Raspberry Pi 高品質相機配合使用的新需求，Arducam 選擇並測試了從長焦到廣角的各種 M12 卡口鏡頭，用於在您的 Rpi HQ 相機上拍攝。現在，您可以更輕鬆地獲得所需的最佳鏡頭，我們將在不久的將來保持鏡頭列表的增長。
If you want to grab all the available S-mount lenses for the HQ camera, Arducam has also got a 6-in-1 M12 lens bundle here.／如果您想為 HQ 相機獲取所有可用的 S-mount 鏡頭，Arducam 還提供了 6 合 1 M12 鏡頭包（買LK003） 。

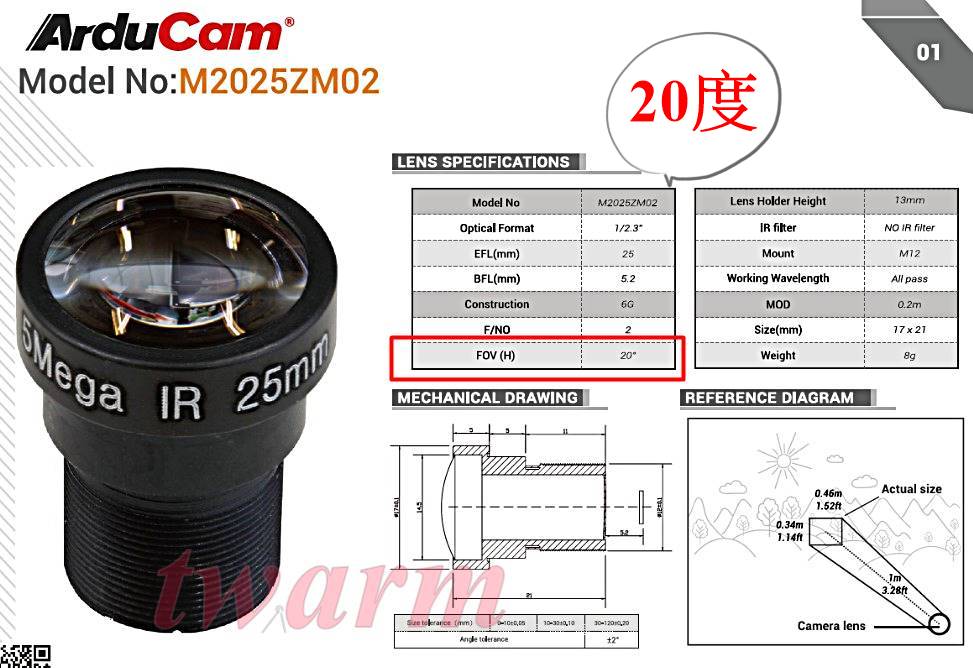

Lens Specification:
- Model No: M2025ZM02
- Optical Format: 1/2.3"
- Focal Length: 25mm 焦距
- Aperture: F2
- Field of View (FOV): 20° (H) on Raspberry Pi High Quality Camera, 8° (H) on Raspberry Pi V1/V2 Camera／
在Raspberry Pi HQ Camera 相機上為20°（H），
在Raspberry Pi V1 / V2相機上為8°（H） - Mount: M12 mount
- Back Focal Length: 5.2mm 後焦距
- MOD: 0.2m
- Dimension: Φ17×21mm
- Weight: 8g
- IR Sensitivity: sensitive to IR light, without IR filter
An inexpensive alternative to the two official Raspberry Pi HQ camera lenses.
An M12 lens with a 20° FoV is capable of capturing a 0.46 x 0.34 m (1.52 x 1.14 ft) scene at a 1-meter distance.
Why S-mount lenses are ideal for the RPi High Quality Camera:
- Lightweight: It’s tiny and takes less space than the official lenses.
- Cost-effective: You get more options with the equivalent amount of money.
- Project-centric: Different projects lead to different lens requirements, you need lenses with certain FoVs for specific needs as the notion of one-lens-fits-all gets impractical from time to time.
- OEM-ready: Unlike C/CS mount lenses, M12 lenses are highly customizable in regards to product designs.
相關文件
Documentation:
You May Also Like
This lens can also be used with Arducam 12MP IMX477 high quality camera modules, which are compatible with the Raspberry Pi, Jetson Nano and More.
Arducam High Quality Camera for Raspberry Pi>>
Arducam Complete High Quality Camera Bundle for Raspberry Pi>>
Arducam High Quality Camera for Jetson Nano>>
Arducam Complete High Quality Camera Bundle for Jetson Nano>>
相關資訊
其他具有不同 FoV 的 Arducam S 卡口鏡頭
- 鏡頭 70 度： 20° HQ 相機鏡頭（LN036）、 50° HQ 相機鏡頭（LN024）、 70° HQ 相機鏡頭（LN023）。
- 廣角和魚眼鏡頭： 90° HQ 相機鏡頭（LN033）、 新140° HQ 相機鏡頭（LN056）、 180° HQ 相機鏡頭（LN031）。
