DSO Nano V3 可攜式數位儲存示波器 (109990013) (TOL-11702)
The DSO Nano V3 is a pocket-size compatible 32bit digital storage oscilloscope. Based on ARM -M3, it’s equipped with 320*240 color display, SD card, USB port and recharging function. It’s compact, simple to operate; meets the basic demands of school lab, electric furniture repairment and electric engineering.
This is a updated and cool version of DSO Nano which features a firmware and a embedded 2 Mbyte storage chip instead of micro SD card slot. The documents of this version in detail is on this page, please refer to it.
NOTE：For DSO Nano with SD card slot, it is not available now. If you get one from our distributers’ stock, please click here to check the document.
影片參考: https://youtu.be/MlnXvzxDnwY
Updates in v3:
- V3 used a new firmware with user-friendly interface, easier to operate
- Upgraded firmware via virtual disk
- Added build-in 2Mbyte storage chip instead of micro SD card slot
- Black metal shell
Features
- Portable and lightweight
- Color display
- Waveform storage and playback
- 6 triggering modes
- 200Khz Analog Bandwidth
- Complete measurement markers and signal characteristics
- Built-in Signal Generator
- Accessories available
- Open Source hardware and firmware
Technical details
| Dimensions | 149mm x101mm x33mm |
| Weight | G.W 184g |
| Battery | Lithium Cells / Batteries contained in equipment UN3481 - PI967 |
| Display | 2.8'' color TFT LCD |
| Display Resolution | 320x240 Display Colors 65K |
| Analog Broadband | 0 ~ 200kHz |
| Max. Sampling Rate | 1Msps 12 bit |
| Sampling Storage Depth | 4096 points |
| Transverse Sensitivity | 1uS/Div~10S/Div(1-2-5 stepping) |
| Vertical Sensitivity | 10mv/Div~10V/Div(x1 probe) 0.5V/Div~10V/Div(x10 probe) |
| Input Resistance | >500KΩ |
| Max. Input Voltage | 40Vpp（x1 probe） |
| Coupling Mode | DC |
| Triggering Mode | Auto，Normal，Single，None |
| Auto Measurement | Frequency, cycle, duty, Vpp, Vram, Vavg, DC voltage; Vertical Precise Measurement Cursor; Horizontal Precise Measurement Cursor; Rising/Falling Edge Trigger; Triggering Cursor; Triggering Sensitivity Cursor; Hold/Run |
| Inbuilt Test Signal | 10Hz~1MHz(1-2-5 stepping) |
| Waveform Storage | build-in 2Mbyte |
| PC Connection Interface | Connection through USB |
| Recharging Method | Recharging through USB interface |
| Dimensions | 105mm x 53mm x 8mm |

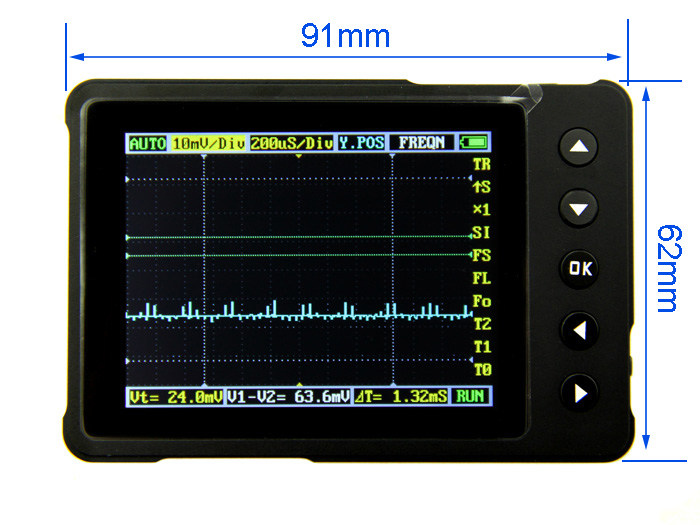

產品尺寸
- (無探頭)長X寬X高：91mmX62mmX13mm
Part List
| DSO Nano | 1 |
| Metal Stand | 1 |
| Screw | 1 |
| Probe cable | 1 |
| Sack | 1 |
ECCN/HTS
| HSCODE | 9030201000 |
| USHSCODE | 90302010 |
| UPC | 841454110316 |
DOCUMENTS
DSO_Nano_V3_User_Manual v4.22.pdf
DSO Nano Official Firmware V4.32DSO Nano Official Firmware App2.6BenF Firmware v3.64 Thank **Benf **for sharing this great firmware and **Alf **arranging it to work with DFU Ver3.22. Note that the BenF firmware v3.64 WILL NOT SAVE to the internal memory of the V3. If your V3 does not have an external card slot then you will not be able to save images or data.
