產品說明14

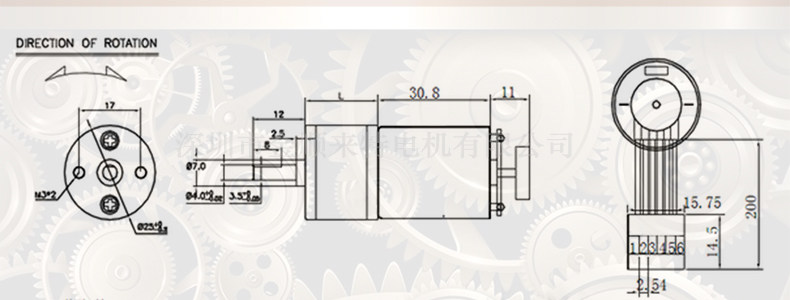

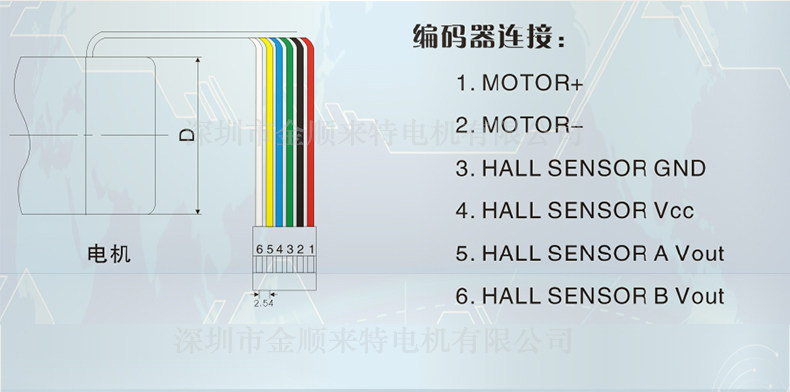

JGA25-371減速電機 帶編碼器測速碼盤馬達
工作電壓：6-24VDC
額定電壓：12V
12V每分鐘空載轉速有：977rpm 463rpm 201rpm 126rpm 95rpm 55rpm 41rpm 25rpm 19rpm 11rpm 8.6rpm

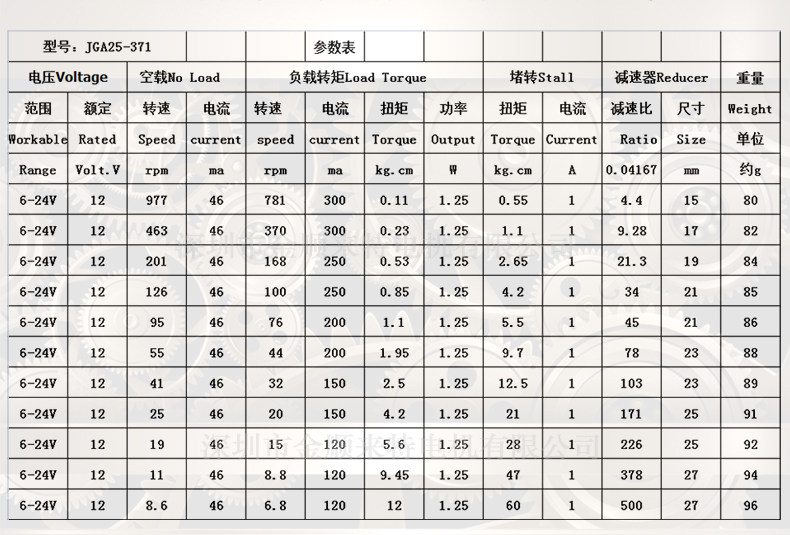

| 型號：JGA25-371 | | | 參數表 | | | | | | | |
| 電壓Voltage | 空載No Load | 負載轉矩Load Torque | 堵轉Stall | 減速器Reducer | 重量 |
| 範圍 | 額定 | 轉速 | 電流 | 轉速 | 電流 | 扭矩 | 功率 | 扭矩 | 電流 | 減速比 | 尺寸 | Weight |
| Workable | Rated | Speed | current | speed | current | Torque | Output | Torque | Current | Ratio | Size | 單位 |
| Range | Volt.V | rpm | ma | rpm | ma | kg.cm | W | kg.cm | A | 1:00 | mm | 約g |
| 6-24V | 12 | 977 | 46 | 781 | 300 | 0.11 | 1.25 | 0.55 | 1 | 4.4 | 15 | 80 |
| 6-24V | 12 | 463 | 46 | 370 | 300 | 0.23 | 1.25 | 1.1 | 1 | 9.28 | 17 | 82 |
| 6-24V | 12 | 201 | 46 | 168 | 250 | 0.53 | 1.25 | 2.65 | 1 | 21.3 | 19 | 84 |
| 6-24V | 12 | 126 | 46 | 100 | 250 | 0.85 | 1.25 | 4.2 | 1 | 34 | 21 | 85 |
| 6-24V | 12 | 95 | 46 | 76 | 200 | 1.1 | 1.25 | 5.5 | 1 | 45 | 21 | 86 |
| 6-24V | 12 | 55 | 46 | 44 | 200 | 1.95 | 1.25 | 9.7 | 1 | 78 | 23 | 88 |
| 6-24V | 12 | 41 | 46 | 32 | 150 | 2.5 | 1.25 | 12.5 | 1 | 103 | 23 | 89 |
| 6-24V | 12 | 25 | 46 | 20 | 150 | 4.2 | 1.25 | 21 | 1 | 171 | 25 | 91 |
| 6-24V | 12 | 19 | 46 | 15 | 120 | 5.6 | 1.25 | 28 | 1 | 226 | 25 | 92 |
| 6-24V | 12 | 11 | 46 | 8.8 | 120 | 9.45 | 1.25 | 47 | 1 | 378 | 27 | 94 |
| 6-24V | 12 | 8.6 | 46 | 6.8 | 120 | 12 | 1.25 | 60 | 1 | 500 | 27 | 96 |
