DEBIX SOM A i.MX 8M Plus Core Board 核心板(DEBIX SOM A-工業級)-電洽
NT$99,999
運費NT$50
條碼3672
產品說明0

DEBIX SOM A i.MX 8M Plus Core Board 核心板(DEBIX SOM A-工業級)

The first DEBIX core board with industrial or commercial grade CPU options

1.RAM:1GB、2GB、4GB、6GB、8GB (多規格可選)

2.eMMC:8GB、16GB、32GB、64GB、128GB、256GB (多規格可選)

  DEBIX SOM A is the first System on Module product of the DEBIX series. As with the DEBIX Model A SBC, it is based on NXP i.MX 8M Plus CPU with a 2.3 TOPS NPU, which brings us the same powerful system performance. This core board design has some notable benefits, such as design reutilization, reduction of development time of the carrier boards, and flexible integration into various embedded systems.

【Main Features】

• Powerful industrial grade core board built to meet the needs of industry 4.0, IoTs, smart cities and multimedia

• Complete software development including Android 11/ Yocto-L5.10.72_2.2.0/ Ubuntu 20.04/ Windows 10 IoT Enterprise operating system and basic software for fast and direct applications

• Real-time control with Cortex-M7. Robust control networks supported by CAN FD and dual Gigabit Ethernets, one of which supports Time Sensitive Networking (TSN)

• Dual Image Signal Processors (ISP) and dual camera inputs for an efficient advanced vision system

• Advanced multimedia capabilities include 1080p60 video encode and decode (including H.265, H.264), 3D/2D graphic acceleration, and multiple audio and voice functionalities



Specification
System
CPU
NXP i.MX 8M Plus (default), 4 x Cortex-A53, comes with an integrated neural processing unit (NPU) that delivers up to 2.3 TOPS. Industrial grade CPU runs at 1.6GHz, and commercial grade CPU runs at up to 1.8GHz.
(i.MX 8M Plus series CPU optional)
Memory 2GB LPDDR4 (1GB/4GB/6GB/8GB optional) 可選
Storage Onboard 16GB eMMC (8GB/32GB/64GB/128GB/256GB optional) 可選
Operating System Ubuntu20.04, Android11, Yocto-L5.10.72_2.2.0, Windows 10 IoT Enterprise
Note: eMMC(at least 6GB) is necessary to run Windows 10 IoT Enterprise
I/O Interfaces
Ethernet
2 x Gigabit Ethernet controller, one of them supports Time Sensitive Networking (TSN)
Display
1 x HDMI 2.0a, support 3840 x 2160 at 30Hz, 1920 x 1080 at 120Hz, 1920 x 1080 at 60Hz
1 x LVDS, support 4Lane and 8Lane
1 x MIPI DSI, support 2560 x 1080 at 60Hz
Camera 2 x MIPI CSI
Audio
Up to 6 x SAI (synchronous audio interface), HiFi4 DSP, 1 x SPDIF IN, 1 x  SPDIF OUT
(Note: 1 x SAI with 8 TX and 8 RX lanes, 1 x SAI with 4 TX and 4 RX lanes, 2 x SAI with 2 TX and 2 RX lanes, 2 x SAI with 1 TX and 1RX lane, all SAIs support I2S and AC97)
USB 2 x USB 3.0, configurable as device or host
UART Up to 4 x UART
I2C
Up to 6 x I2C, I2C2~I2C6 are exposed to the connectors (2 of the five I2Cs are multiplexed as SD1). I2C1 is not allowed to be configured.
SDIO 2 x SDIO
SPI Up to 3 x ECSPI
PCIe
1 x PCIe Gen3
CAN 2 x CAN
GPIO 13 x GPIO for default, other functional pins can be configured as GPIO through Software
Power Supply
Input Voltage
3.5V~5V
CPU Operating Temperature
Commercial 商業 0℃~95℃
Industrial 工業 -40℃~105℃
Mechanical & Environmental

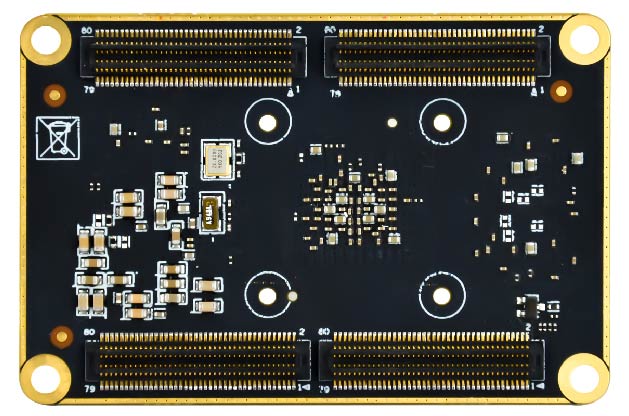

Connector 4 x Double-sided board-to-board connector (model number BB51024A-R80-10-32), 2 x 40pin/0.5mm pitch, matching sockets of various heights

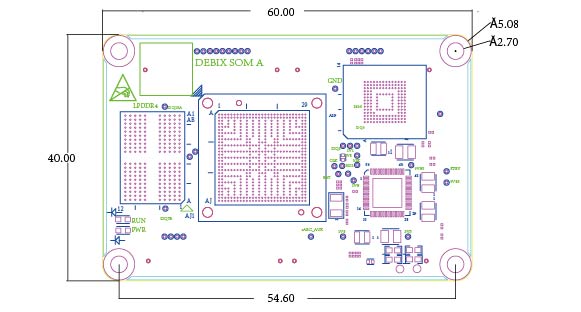

Dimension 60mm(L) x 40mm(W) x 5.6mm(H)

相關文件

Documents

【Safety Instruction/安全須知】:

To avoid malfunction or damage to this product please observe the following:/為避免本產品發生故障或損壞,請遵守以下事項:

• Do not expose to water, moisture or place on a conductive surface whilst in operation./運行時請勿接觸水、濕氣放置在導電錶面上。

• Take care while handling to avoid mechanical or electrical damage to the printed circuit board and connectors./處理時要小心,避免印刷電路板連接器造成機械或電氣損壞

• Avoid handling the printed circuit board whilst it is powered and only handle by the
edges to minimize the risk of electrostatic discharge damage./
避免在印刷電路板通電時觸摸它只能觸摸邊緣,以盡量減少靜電放電損壞的風險。



【Warnings/警告】:

• This product should be used with a carrier board and connected to an 5V external power supply/本產品需搭配載板使用,並外接5V電源。

• This product should be operated in a well-ventilated environment and, if used inside a case, the case should not be covered./本產品應在通風良好的環境中使用,如果在外殼內使用,外殼不應被遮蓋

• This product should be placed on a stable, flat, non-conductive surface in use and
should not be contacted by conductive items./
本產品在使用時應放置在穩固、平坦、不導電的表面上,不得接觸導電物品。

• The connection of incompatible devices to the GPIO connection may affect compliance and result in damage to the unit and invalidate the warranty./將不兼容的設備連接到GPIO 連接可能會影響合規性並導致設備損壞並使保修失效。

• All peripherals used with this product should comply with relevant standards for the country of use and be marked accordingly to ensure that safety and performance requirements are met. These articles include but are not limited to keyboards, monitors and mice when used in conjunction with DEBIX./本產品使用的所有外圍設備均應符合使用國家/地區的相關標準並進行相應標記,以確保滿足安全和性能要求。 這些物品包括但不限於與 DEBIX 結合使用時的鍵盤、顯示器和鼠標。

• Where peripherals are connected that do not include the cable or connector, the cable or connector must offer adequate insulation and operation in order that the relevant performance and safety requirements are met./如果連接的外圍設備不包括電纜或連接器,則電纜或連接器必須提供足夠的絕緣和操作,以滿足相關的性能和安全要求。
