DEBIX SOM A I/O Board 工業單板計算機-IO擴展板(BMB-08)
NT$9,999
運費NT$50
條碼3667
產品說明0

DEBIX SOM A I/O Board 底板(BMB-08)

專為 DEBIX SOM A 設計的載板,結合了工業控制、物聯網連接和多媒體所需的功能。

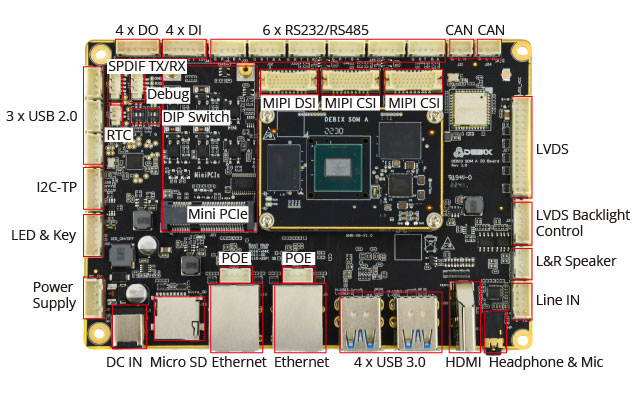

  DEBIX SOM A I/O Board is a carrier board designed for DEBIX SOM A, which connects to DEBIX SOM A through 4 double-sided board-to-board socket connectors on its front side. It's all about full-featured interfaces supported by the core board based on i.MX 8M Plus, and provides a perfect solution combining the functions required for industrial control, IoT connection and multimedia.

【Main Features】

• Feature rich interfaces to take advantage of the i.MX 8M Plus processor to the fullest extent

• Besides boot from eMMC on DEBIX SOM A, the I/O Board supports boot from Micro SD and SPI Nor Flash

• The serial ports, CAN and GPIO of the I/O Board are designed with physical isolation, dedicated to industrial and IoT applications

• Support 2 Gigabit Ethernet with POE function, 2.4GHz & 5GHz Wi-Fi and Bluetooth 5.0

Specification
System
Core Board
DEBIX SOM A
Boot (1) Support boot from eMMC on DEBIX SOM A
(2) Support boot from Micro SD on carrier board
(3) Support boot from SPI Nor Flash on carrier board
Video & Audio
HDMI
1 x HDMI output, Type-A female socket
LVDS
(1) 1 x Dual-channel LVDS output, support single-channel 8bit and dual-channel 8bit output (2*15Pin/2.0mm pin header)
(2) 1 x Backlight control connector (1*6Pin/2.0mm pin header)
(3) 1 x I2C touch panel connector (1*6Pin/2.0mm pin header)
MIPI DSI 1 x 4Lane MIPI DSI (2*10Pin/1.25mm pin header)
MIPI CSI
2 x 4Lane MIPI CSI (2*10Pin/1.25mm pin header)
Audio
(1) 1 x Headphone and mic combo port, 3.5mm socket, compatible with built-in header design
(2) 1 x Line in, analog input
(3) 1 x L&R speaker output, Max. 3W@4Ω (1*4Pin/2.0mm pin header)
(4) 1 x SPDIF TX/RX audio connector (1*4Pin/1.25mm pin header)
Communication
Ethernet 2 x Independent MAC Gigabit RJ45 port with POE power supply (need POE power device module)
Wi-Fi & BT 2.4GHz & 5GHz Wi-Fi and Bluetooth 5.0, external SMA antenna connectors for Wi-Fi and 4G
Other I/O Interfaces
SIM Slot 1 x Micro SIM slot, push pop-up slot
SD Slot 1 x Micro SD slot, push pop-up slot
Mini PCIe
(1) Support 4G Mini PCIe module such as Quectel 4G Module, built-in SIM card, etc.
(2) Support LoRa Mini PCIe module
(3) Support Mini PCIe expansion for network card, SATA and serial port
USB 3.0 4 x USB 3.0 Host, double-layer Type-A interface
USB 2.0 3 x USB 2.0 Host (1*4Pin/2.0mm pin header)
Serial Ports
(1) 6 x Physically-isolated RS232/RS485 (you can choose only one of two), compatible with UART TTL 3.3V without physical isolation
(2) 1 x UART TTL 3.3V system debug port
GPIO
(1) 4 x Physically-isolated DI, support dry contact and wet contact
(2) 4 x Physically-isolated DO, support wet contact, compatible with dry contact of external relay
CAN 2 x Physically-isolated CAN
LED & Key
(1) 1 x Power LED
(2) 2 x Programmable LED
(3) 1 x ON/OFF
The above interfaces share one connector (1*6Pin/2.0mm pin header)
(4) Built-in small key for eMMC upgrade without disassembly
DC Jack
(1) 1 x DC jack for 5.5mm x 2.1mm DC plug
(2) 1 x Built-in power supply connector (1*4Pin/2.54mm pin header)
Power Supply
Power Input DC 12V for default, support wide voltage range of DC 12V~36V
Mechanical

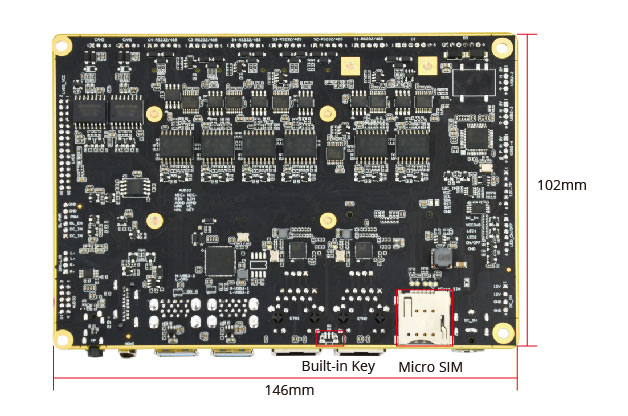

Dimension 146.0mm x 102.0mm

相關文件

Documents

【Safety Instruction/安全須知】:

To avoid malfunction or damage to this product please observe the following:/為避免本產品發生故障或損壞,請遵守以下事項:

• Do not expose to water, moisture or place on a conductive surface whilst in operation./運行時請勿接觸水、濕氣放置在導電錶面上。

• Take care while handling to avoid mechanical or electrical damage to the printed circuit board and connectors./處理時要小心,避免印刷電路板連接器造成機械或電氣損壞

• Avoid handling the printed circuit board whilst it is powered and only handle by the
edges to minimize the risk of electrostatic discharge damage./
避免在印刷電路板通電時觸摸它只能觸摸邊緣,以盡量減少靜電放電損壞的風險。



【Warnings/警告】:

• This product should be used with DEBIX SOM A./本產品應與 DEBIX SOM A 一起使用。

• This product should be operated in a well-ventilated environment and, if used inside a case, the case should not be covered./本產品應在通風良好的環境中使用,如果在外殼內使用,外殼不應被遮蓋

• This product should be placed on a stable, flat, non-conductive surface in use and
should not be contacted by conductive items./
本產品在使用時應放置在穩固、平坦、不導電的表面上,不得接觸導電物品。

• The connection of incompatible devices to the GPIO connection may affect compliance and result in damage to the unit and invalidate the warranty./將不兼容的設備連接到GPIO 連接可能會影響合規性並導致設備損壞並使保修失效。

• All peripherals used with this product should comply with relevant standards for the country of use and be marked accordingly to ensure that safety and performance requirements are met. These articles include but are not limited to keyboards, monitors and mice when used in conjunction with DEBIX./本產品使用的所有外圍設備均應符合使用國家/地區的相關標準並進行相應標記,以確保滿足安全和性能要求。 這些物品包括但不限於與 DEBIX 結合使用時的鍵盤、顯示器和鼠標。

• Where peripherals are connected that do not include the cable or connector, the cable or connector must offer adequate insulation and operation in order that the relevant performance and safety requirements are met./如果連接的外圍設備不包括電纜或連接器,則電纜或連接器必須提供足夠的絕緣和操作,以滿足相關的性能和安全要求。
