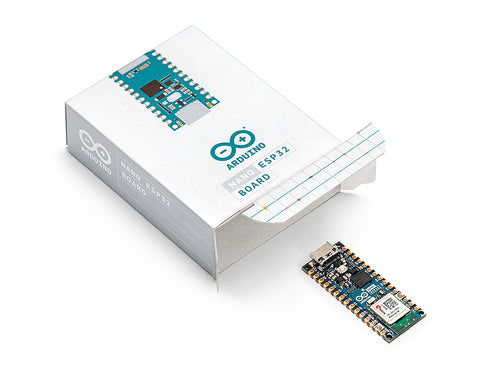

Arduino® Nano ESP32 不帶針 (ABX00092) 義大利原廠
NANO ESP32
１．不焊針 ABX00092
２．代焊針 ABX00083
Introducing the Nano ESP32, a powerful new addition to the iconic Arduino Nano ecosystem. This little board brings the power of the popular ESP32-S3 to with the support of the Arduino ecosystem, giving makers the perfect option to explore the world of Arduino and MicroPython programming. Whether you're a beginner keen to step into the world of IoT or MicroPython, or an experienced maker looking to incorporate it into your next product, the Nano ESP32 is the ideal solution to kick-start your IoT or MicroPython project with ease. It is available with or without headers.
隆重介紹 Nano ESP32，這是標誌性 Arduino Nano 生態系統的強大新成員。這款小板將流行的 ESP32-S3 的強大功能與 Arduino 生態系統的支援相結合，為創客提供了探索 Arduino 和 MicroPython 程式設計世界的完美選擇。無論您是熱衷於進入 IoT 或 MicroPython 世界的初學者，還是希望將其融入您的下一個產品的經驗豐富的製造商，Nano ESP32 都是輕鬆啟動 IoT 或 MicroPython 專案的理想解決方案。它可以帶或不帶排針。
Get ready to experience the perfect mix of accessibility, support, and power with the Arduino Nano ESP32 – where the Arduino brand you know and love meets the robust capabilities of the ESP32-SE, all in the compact Nano form factor. With comprehensive and accessible setup steps you’ll have the Arduino ESP32 up and running in no time, no matter your level of experience!
準備好體驗 Arduino Nano ESP32 的可訪問性、支援和功能的完美組合——您熟悉和喜愛的 Arduino 品牌與 ESP32-SE 的強大功能相結合，一切都在緊湊的 Nano 外形中。透過全面且易於存取的設定步驟，無論您的經驗水平如何，您都可以立即啟動並運行 Arduino ESP32！
Key benefits of the Arduino Nano ESP32 主要優點
Compact form factor: Designed with the well-known Nano form factor in mind, this board's compact size makes it perfect for embedding in standalone projects.
緊湊的外形：該板的設計考慮到了眾所周知的奈米外形，其緊湊的尺寸使其非常適合嵌入到獨立項目中。
Wireless connectivity: Harness the power of the ESP32-S3 microcontroller, well-known in the IoT realm, with full Arduino support for wireless and Bluetooth ® connectivity.
無線連接：利用在物聯網領域眾所周知的 ESP32-S3 微控制器的強大功能，並為無線和藍牙®連接提供完整的 Arduino 支援。
Arduino and MicroPython support: Seamlessly switch between Arduino and MicroPython programming with a few simple steps. Arduino even offer an introductory course for those new to the MicroPython world, so if you’re a beginner you don’t need to worry about getting started.
Arduino 和 MicroPython 支援：只需幾個簡單的步驟即可在 Arduino 和 MicroPython 程式設計之間無縫切換。 Arduino 甚至為 MicroPython 世界的新手提供入門課程，因此如果您是初學者，則無需擔心入門問題。
Monitor and control your projects from anywhere: Quickly and easily create IoT projects with just a few lines of code. Arduino setup takes care of security, allowing you to monitor and control your project from anywhere using the Arduino IoT Cloud app.
隨時隨地監控和控制您的專案：只需幾行程式碼即可快速輕鬆地建立物聯網專案。 Arduino 設定負責安全性，讓您可以使用 Arduino IoT Cloud 應用程式從任何地方監控和控制您的專案。
HID support: Simulate human interface devices, such as keyboards or mice, over USB, opening new possibilities for interacting with your computer.
HID 支援：透過 USB 模擬人機介面設備，例如鍵盤或滑鼠，為與電腦互動開闢了新的可能性。
Technical Specifications 技術規格
Microcontroller: u-blox® NORA-W106 (ESP32-S3)
USB Connector: USB-C®
Pins: Built-in LED Pin: 13; Digital I/O Pins: 14; Analog Input Pins: 8; PWM Pins: 5; External Interrupts: All digital pins
Connectivity: Wi-Fi®: u-blox® NORA-W106 (ESP32-S3); Bluetooth®: u-blox® NORA-W106 (ESP32-S3)
Communication: UART: 1x, D0 (TX), D1, (RX); I2C: 1x, A4 (SDA), A5 (SCL); SPI: D11 (COPI), D12 (CIPO), D13 (SCK). Use any GPIO for Chip Select (CS).
Power: I/O Voltage: 3.3V; Input Voltage (Nominal): 5-18V; Source Current per I/O Pin: 40 mA; Sink Current per I/O Pin: 28 mA
Clock Speed: Processor: up to 240 MHz
Memory: ROM: 384 kB; SRAM 512 kB; External Flash: 128 Mbit (16 MB)
Dimensions 尺寸: 18mm x 45mm
| Board | Name | Arduino® Nano ESP32 |
| SKU | ABX00092 |
| Microcontroller | u-blox® NORA-W106 (ESP32-S3) |
| USB connector | USB-C® |
Pins 針腳
| Built-in LED Pin | 13 |
| Built-in RGB LED pins | 14-16 |
| Digital I/O Pins | 14 |
| Analog input pins | 8 |
| PWM pins | 5 |
| External interrupts | All digital pins |
| Connectivity | Wi-Fi® | u-blox® NORA-W106 (ESP32-S3) |
| Bluetooth® | u-blox® NORA-W106 (ESP32-S3) |
| Communication | UART | 2x |
| I2C | 1x, A4 (SDA), A5 (SCL) |
| SPI | D11 (COPI), D12 (CIPO), D13 (SCK). Use any GPIO for Chip Select (CS) |
| Power | I/O Voltage 輸入/輸出電壓 | 3.3 V |
| Input voltage 輸入電壓 (nominal) | 6-21 V |
| Source Current per I/O Pin | 40 mA |
| Sink Current per I/O Pin | 28 mA |
| Clock speed | Processor | up to 240 MHz |
| Memory | ROM | 384 kB |
| SRAM | 512 kB |
| External Flash | 128 Mbit (16 MB) |
Dimensions 尺寸
| Width 寬
| 18 mm |
Length 長
| 45 mm |
