產品說明1

PICKIT3主要功能特點：

• 1、下載速度快。USB連接比ICD2穩定。
• 2、脫機燒寫功能。開發調試編程可以用，做產品批量脫機燒寫也好使。
• 3、供電輸出，內部電壓可以在MPLAB IDE軟件直接控制。
• 4、PIKCIT3，已經開始支持WIN7系統
• 5、高仿原裝外殼（見圖片）,超小體積：95*39*11MM
• 6、全貼片設計，貼片經回流焊接加工,產品質量更加穩定可靠.
• 7、本產品終身保修（主要IC成本維修）。

 配件說明：

• PICKIT3主機*1
• 優質USB線*1
• 6P排線雙頭排針*1

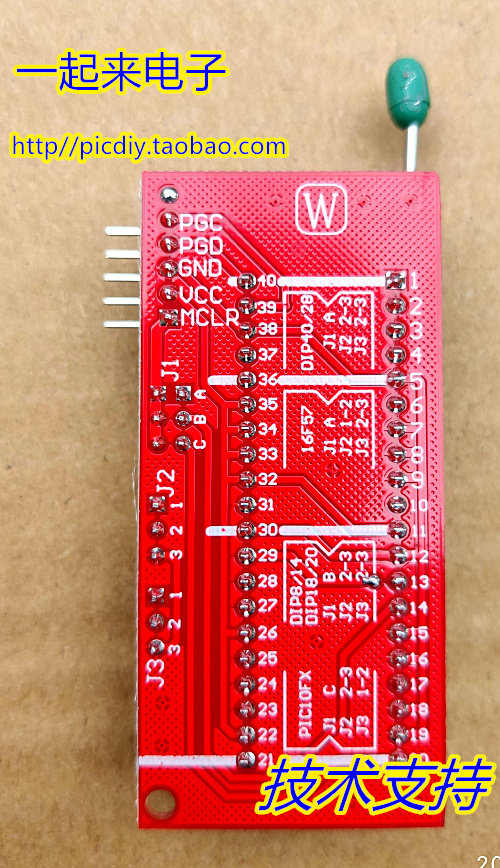

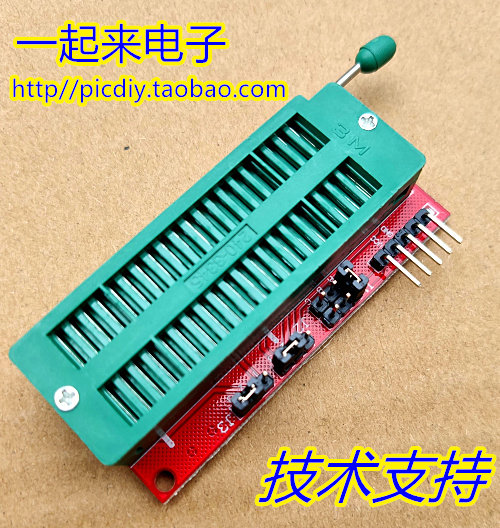

• 萬用燒寫座*1
• 5V1A電源器*1
• 教學光碟*1 (請發mail索取，現在統一都是給載點下載，不再有光碟了)


［PICkit 3與其他產品的對比］

1、PICkit 3與ICD 2的對比

1. 16位芯片，下載速度要遠快於ICD2  2倍以上。
2. 價格遠低於ICD2,支持的系列幾乎同ICD2一樣多，後續會超過ICD2.
3. 連接性比ICD2可靠，不會經常出現ICD2 USB連不上的問題，這點是ICD2最頭疼的問題之一。
4. 官方開放標準電路。
5. 已經可支持脫機下載,可以適合現場程序升級和批量編程。
6. 直接調試PIC18FXXK系列，以及PIC16F72X等VPP低於10V的芯片，無須手動為VPP增加降壓電路。

2、PICkit 3與PICkit 2的對比

相同之處有：

1. 功能上相同
2. 通過連接到PC的USB供電；
3. 提供可編程的電壓；

不同之處有：

1. PICKIT3速度會更快，PICkit3的主芯片是PIC24，速度稍比Pickit2有所提升，USB還是Full12M。
2. 擴大脫機下載空間（512Kbytes）,PICkit 2（128Kbytes）
3. 提供更準確的參考電壓源
   增加電壓範圍（1.8-5V VDD；1.8-14V VPP），PICkit 2（2.5-5V VDD）
4. 支持的芯片系列更多，目前PICKIT3已經支持PIC16F193X以及PIC32。PICKIT2後續不會支持PIC32的調試，而PICKIT2對一些新的芯片的支持，一直不斷處於BETA狀態，比如PIC18F14K50。
5.  PICKIT3，有4個自恢復保險絲，PK2一個保險絲都沒有，幾乎是不防護的裸機。
6. PIKCIT3，已經開始支持WIN7系統，PICKIT2不支持。

Basic Debugger System

    The debugger system can be configured to use standard ICSP communication for both programming and debugging functions.

CAUTION: Do not change hardware connections while the PICkit3 or target is powered.

Supported Devices

Refer to MPLAB IDE v8.76, the following devices are supported:



ICSP PIC10F PIC10F200, PIC10F202, PIC10F204, PIC10F206, PIC10F220, PIC10F222 PIC12F PIC12F508, PIC12F509, PIC12F510, PIC12F519, PIC12F609, PIC12HV609, PIC12F615, PIC12FHV615PIC12F629, PIC12F635, PIC12F675, PIC12F683 PIC16F PIC16F505,PIC16F506,PIC16F526,PIC16F54,PIC16F57,PIC16F59,PIC16F610,PIC16FHV610,PIC16F616, PIC16FHV616PIC16F627, PIC16F628, PIC16F627A, PIC16F628A, PIC16F648A, PIC16F630, PIC16F631, PIC16F636,PIC16F639,PIC16F676,PIC16F677,PIC16F684,PIC16F685,PIC16F687,PIC16F688,PIC16F689, PIC16F690,PIC16F72, PIC16F73, PIC16F74, PIC16F76, PIC16F77, PIC16F722, PIC16F723, PIC16F724, PIC16F726, PIC16F727, PIC16F716,PIC16F737, PIC16F747, PIC16F767, PIC16F777, PIC16F785, PIC16FHV785,PIC16F84A,PIC16F87,PIC16F88,PIC16F818,PIC16F819,PIC16F870,PIC16F871,PIC16F872, PIC16F873, PIC16F874,PIC16F876, PIC16F877, PIC16F873A, PIC16F874A, PIC16F876A, PIC16F877A, PIC16F882, PIC16F883, PIC16F884, PIC16F886, PIC16F887,PIC16F913, PIC16F914, PIC16F916, PIC16F917, PIC16F946, PIC16F1933, PIC16F1934, PIC16F1936, PIC16F1937,PIC16F1938, PIC16F1939, PIC16LF1933, PIC16F1934, PIC16F1936, PIC16F1937,PIC16LF1938, PIC16LF1939 PIC18F PIC18F242, PIC18F252, PIC18F442, PIC18F452,PIC18F248, PIC18F258, PIC18F448, PIC18F458 PIC18F1220, PIC18F1320, PIC18F2220, PIC18F2320,PIC18F1230, PIC18F1330,PIC18F2221, PIC18F2321 PIC18F2331, PIC18F2410, PIC18F2420, PIC18F2431,PIC18F2423,PIC18F2450, PIC18F2455, PIC18F2458, PIC18F2480,PIC18F2510, PIC18F2515, PIC18F2520, PIC18F2523,PIC18F2525,PIC18F2550, PIC18F2553, PIC18F2580, PIC18F2585,PIC18F2610, PIC18F2620, PIC18F2680,PIC18F2682, PIC18F2685,PIC18F4220, PIC18F4221,PIC18F4320, PIC18F4321, PIC18F4331,PIC18F4410, PIC18F4420, PIC18F4423,PIC18F4431, PIC18F4450, PIC18F4455,PIC18F4458, PIC18F4480,PIC18F4510, PIC18F4515, PIC18F4520, PIC18F4523 PIC18F4525, PIC18F4550, PIC18F4553, PIC18F4580,PIC18F4585,PIC18F4610, PIC18F4620, PIC18F4680 PIC18F4682, PIC18F4685,PIC18F6310, PIC18F6390, PIC18F6393,PIC18F6410, PIC18F6490, PIC18F6493 PIC18F6520, PIC18F6525, PIC18F6527, PIC18F6585,PIC18F6620, PIC18F6621, PIC18F6622, PIC18F6627 PIC18F6628, PIC18F6680,PIC18F6720, PIC18F6722, PIC18F6723PIC18F8310, PIC18F8390, PIC18F8393 PIC18F8410, PIC18F8490, PIC18F8493,PIC18F8520, PIC18F8525, PIC18F8527, PIC18F8585,PIC18F8621, PIC18F8620,PIC18F8622,PIC18F8627,PIC18F8628,PIC18F8680,PIC18F8720,PIC18F8722,PIC18F8723,PIC18F24J10, F25J10, F44J10, F45J10,PIC18LF24J10, LF25J10, LF44J10, LF45J10,PIC18F24J11, F25J11, F44J11, F45J11 PIC18LF24J11, LF25J11, LF44J11, LF45J11,PIC18F26J11, F46J11,PIC18LF26J11, LF46J11,PIC18F24J50, F25J50, F44J50, F45J50,PIC18LF24J50, LF25J50, LF44J50, LF45J50,PIC18F26J50, F46J50,PIC18LF26J50, LF46J50 PIC18F63J11, 63J90, 64J11, 64J90PIC18F65J10, 65J11, 65J15PIC18F65J50, 65J90PIC18F66J10, 66J11, 66J15, 66J16,PIC18F66J50, 66J55, 66J60, 66J65,PIC18F66J90,PIC18F67J10, 67J11, 67J50, 67J60,PIC18F67J90,PIC18F83J11, 83J90, 84J11, 84J90,PIC18F85J10, 85J11, 85J15, 85J50,PIC18F85J90,PIC18F86J10, 86J11, 86J15, 86J16,PIC18F86J50, 86J55, 86J60, 86J65,PIC18F86J90,PIC18F87J10, 87J11, 87J50, 87J60,PIC18F86J90,PIC18F96J60, 96J65,PIC18F97J60, PIC18F13K22, LF13K22, F14K22, LF14K22PIC18F13K50,14K50,PIC18F23K20,24K20,25K20,26K20PIC18F43K20, 44K20, 45K20, 46K20 PIC24F PIC24F04KA200, 04KA201,PIC24F08KA101, 08KA102,PIC24F16KA101, 16KA102,PIC24FJ16GA002, 16GA004,PIC24FJ32GA002, 32GA004,PIC24FJ32GA102, 32GA104,PIC24FJ32GB002, 32GB004,PIC24FJ48GA002, 48GA004,PIC24FJ64GA002, 64GA004,PIC24FJ64GA102, 64GA104,PIC24FJ64GB002, 64GB004,PIC24FJ64GA006, 64GA008, 64GA010,PIC24FJ64GB106, 64GB108, 64GB110,PIC24FJ96GA006, 96GA008, 96GA010,PIC24FJ128GA006, 128GA008, 128GA010,PIC24FJ128GA106, 128GA108, 128GA110,PIC24FJ128GB106, 128GB108, 128GB110,PIC24FJ192GA106, 192GA108, 192GA110,PIC24FJ192GB106, 192GB108, 192GB110,PIC24FJ256GA106, 256GA108, 256GA110,PIC24FJ256GB106, 256GB108, 256GB110 ,PIC24HJ12GP201, 12GP202,PIC24HJ16GP304,PIC24HJ32GP202, 32GP204,PIC24HJ32GP302, 32GP304 ,PIC24HJ64GP202, 64GP204,PIC24HJ64GP206, 64GP210, 64GP506,PIC24HJ64GP502, 64GP504, 64GP510 ,PIC24HJ128GP202, 128GP204,PIC24HJ128GP206, 128GP210, 128GP306,PIC24HJ128GP310,PIC24HJ128GP502, 128GP504,PIC24HJ128GP506, 128GP510,PIC24HJ256GP206, 256GP210, 256GP610 dsPIC30 dsPIC30F1010,dsPIC30F2010, 2011, 2012,dsPIC30F2020, 2023,dsPIC30F 3010, 3011, 3012 dsPIC30F3013, 3014,dsPIC30F4011, 4012, 4013,dsPIC30F5011, 5013, 5015, 5016,dsPIC30F6010A, 6011A, 6012A dsPIC39 dsPIC39F6013A, 6014A, 6015 dsPIC33 dsPIC33FJ12GP201, 12GP202,dsPIC33FJ16GP304,dsPIC33FJ32GP202, 32GP204,dsPIC33FJ32GP302, 32GP304 dsPIC33FJ64GP202, 64GP204,dsPIC33FJ64GP206, 64GP306, 64GP310,dsPIC33FJ64GP706, 64GP708, 64GP710 dsPIC33FJ64GP802, 64GP804,dsPIC33FJ128GP202, 128GP204,dsPIC33FJ128GP206, 128GP306, 128GP310, dsPIC33FJ128GP706, 128GP708, 128GP710,dsPIC33FJ128GP802, 128GP804,dsPIC33FJ256GP506, 256GP510, 256GP710 dsPIC33FJ06GS101, 06GS102, 06GS202,dsPIC33FJ16GS402, 16GS404,dsPIC33FJ16GS502, 16GS504 dsPIC33FJ12MC201, 12MC202,dsPIC33FJ16MC304,dsPIC33FJ32MC202, 32MC204,dsPIC33FJ32MC302, 32MC304 dsPIC33FJ64MC202, 64MC204,dsPIC33FJ64MC506, 64MC508, 64MC510,dsPIC33FJ64MC706, 64MC710,dsPIC33FJ64MC802, 64MC804,dsPIC33FJ128MC202, 128MC204 dsPIC33FJ128MC506, 128MC510,dsPIC33FJ128MC706, 128MC708, 128MC710 dsPIC33FJ128MC802, 128MC804,dsPIC33FJ256MC510, 256MC710 dsPIC32 PIC32MX320F032H, 320F064H,PIC32MX320F128H, 320F128L,PIC32MX340F128H, 340F128L,PIC32MX340F256H PIC32MX340F512H,PIC32MX360F256L, 360F512L,PIC32MX420F032H,PIC32MX440F128L, 440F128H PIC32MX440F256H,PIC32MX440F512H,PIC32MX460F256L, 460F512L 11 Series Serial EEPROM Devices 11LC/AA010,11LC/AA020,11LC/AA040,11LC/AA080,11LC/AA160 24 Series Serial EEPROM Devices 24LC/AA/C00,24LC/AA01B, 02B, 04B, 08B,24LC/AA16B, 32A,24LC/AA/FC64, 128, 256, 512,24LC/AA/FC1025 25 Series Serial EEPROM Devices 25LC/AA010A, 020A, 040A,25LC/AA080A, 080B, 160A, 160B,25LC/AA320A, 640A,25LC/AA128, 256, 512, 1024 93 Series Serial EEPROM Devices 25LC/AA/C46A, 46B, 46C,25LC/AA/C56A, 56B, 56C,25LC/AA/C66A, 66B, 66C,25LC/AA/C47A, 76B, 76C ,25LC/AA/C48A, 86B, 86C MCP250xx CAN Devices MCP25020, 25025,MCP25050, 25055

 Debugger To Target Communication

    Connecting the PICkit3 to the target board through standard ICSP interface using 6-pin connector. The programmer connector pinout is shown in the figure below:

Be careful on the pin order while connecting.

Incorrect connection may damage the PICkit3 debugger/programmer or the target board.

PICkit3 Status LEDs

The Status LEDs indicate the status of the PICkit3.

Power (green) – Power is supplied to the PICkit3 via the USB port.

Active (blue) – The PICkit3 has connection to the PC USB port and the communication link is active.

Status:

Busy (yellow) – The PICkit3 is busy with a function in progress, such as programming.

Error (red) – The PICkit3 has encountered an error.
