2024更新 新款 RT1062

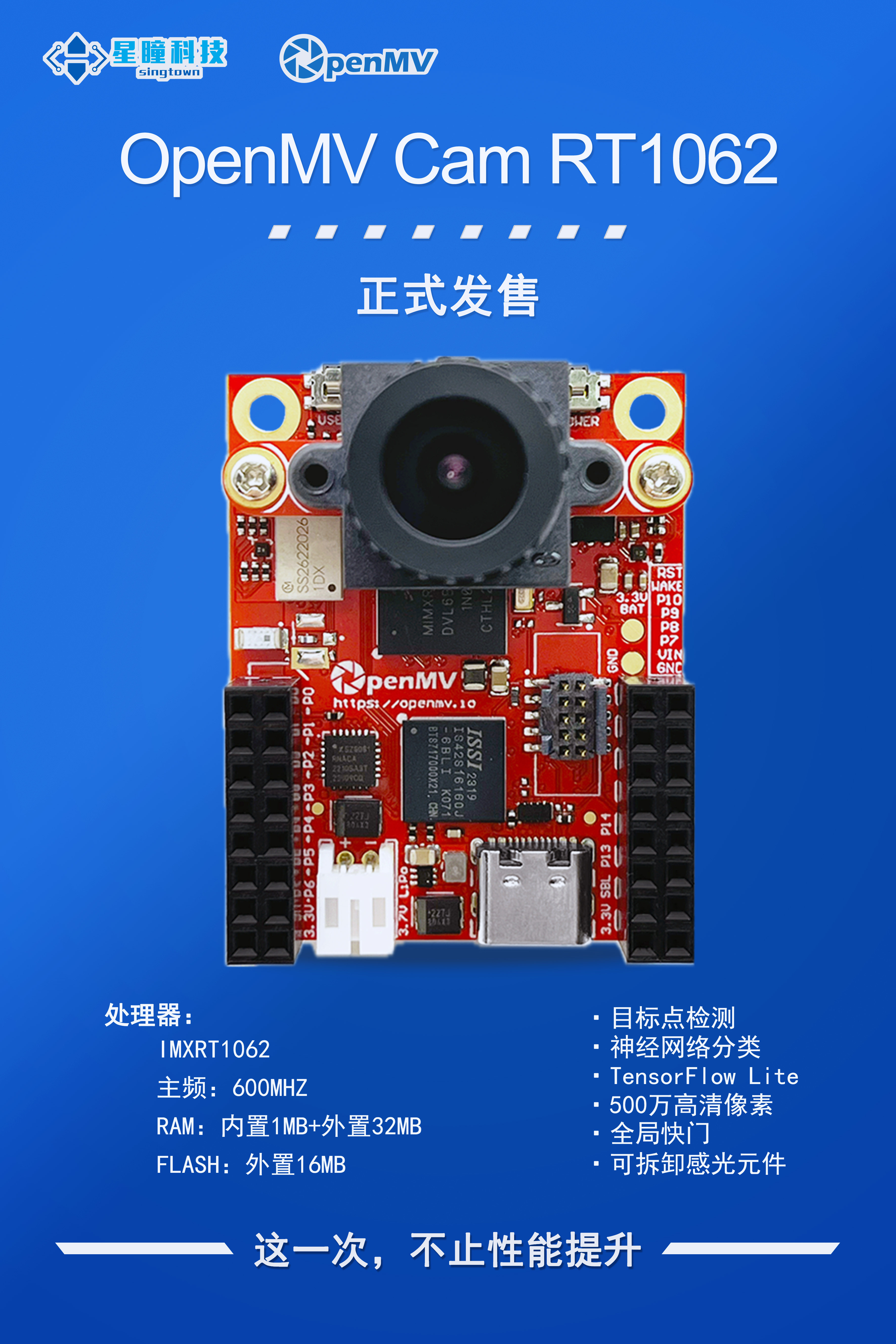

原廠 OpenMV Camera 攝像頭 RT1062 圖形顏色識別 傳感器 開發板（SEN-25035）

　　The OpenMV Cam RT1062 is a small, low power, microcontroller board which allows you to easily implement applications using machine vision in the real-world. You program the OpenMV Cam in high level Python scripts (courtesy of the MicroPython Operating System) instead of C/C++. This makes it easier to deal with the complex outputs of machine vision algorithms and working with high level data structures. But, you still have total control over your OpenMV Cam and its I/O pins in Python. You can easily trigger taking pictures and video on external events or execute machine vision algorithms to figure out how to control your I/O pins.／　
OpenMV Cam RT1062 是一款小型、低功耗的微控制器板，可讓您在現實世界中使用機器視覺輕鬆實現應用程式。
您可以使用進階 Python 腳本（由 MicroPython 作業系統提供）而不是 C/C++ 對 OpenMV Cam 進行程式設計。 這使得處理機器視覺演算法的複雜輸出和使用高級資料結構變得更加容易。
但是，您仍然可以在 Python 中完全控制 OpenMV Cam 及其 I/O 引腳。 您可以輕鬆觸發外部事件拍照和視頻，或執行機器視覺演算法來找出如何控制 I/O 引腳。

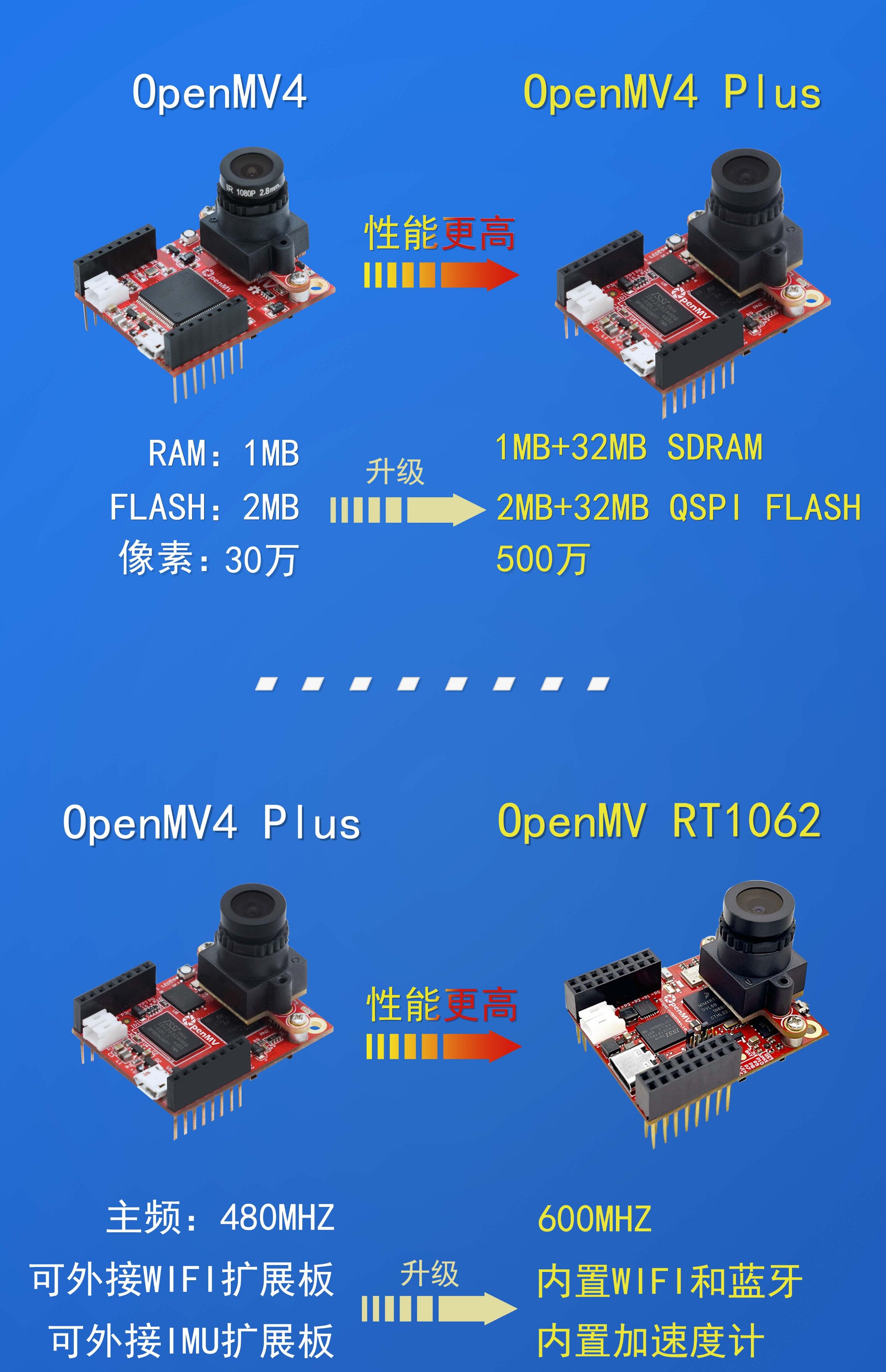

　　The RT1062 ARM Cortex M7 processor runs at 600 MHz with 32MBs SDRAM + 1MB of SRAM and 16 MB of program/storage flash. One of the big differences between the H7 Plus is the inclusion of WIFI on the RT1062.／RT1062 ARM Cortex M7 處理器運作頻率為 600 MHz，具有 32MB SDRAM + 1MB SRAM 和 16 MB 程式/儲存快閃記憶體。 H7 Plus 之間的一大區別是 RT1062 上包含 WIFI。

【FEATURES】：

• Processor／處理器：

  • ARM® 32-bit Cortex®-M7 CPU w/ Double Precision FPU

  • 600 MHz (1284 DMIPS)

  • Core Mark Score: 3020 (compare w/ Raspberry Pi 3: 3800)

• RAM Layout (33MB Total)／RAM佈局（總共 33MB）：

  • 32KB Stack

  • 480KB .DATA/.BSS/Heap/DMA

  • 32MB Frame Buffer/Stack

  • 512KB SDRAM Cache

• Flash Layout (16MB Total)／快閃記憶體佈局（總共 16MB）：

  • 256KB Bootloader

  • 3.768MB Firmware

  • 4MB Embedded Flash Drive

  • 8MB Reserved

• Supported Image Formats／支援的圖像格式：：

  • Grayscale

  • RGB565

  • JPEG (and BAYER/YUV422)

• Maximum Supported Resolutions／支援的最大解析度：

  • Grayscale: 2952x1944 (5MP) and under

  • RGB565: 2952x1944 (5MP) and under

  • Grayscale JPEG: 2952x1944 (5MP) and under

  • RGB565 JPEG: 2952x1944 (5MP) and under

• Lens Info／鏡頭資訊：

  • Focal Length: 2.8mm

  • Aperture: F2.0

  • Format: 1/3"

  • HFOV = 70.8°, VFOV = 55.6°

  • Mount: M12*0.5

  • IR Cut Filter: 650nm (removable)

• All pins are 3.3V Tolerant with a 3.3V Output／所有引腳均可承受 3.3V 電壓並提供 3.3V 輸出

• Power Consumption／能量消耗：

  • Idle: 100mA @ 5V

  • Active: 130mA @ 5V

【APPLICATIONS】應用：

• Robotics
  • Robot navigation

  • Object tracking

  • Collision avoidance, and more.

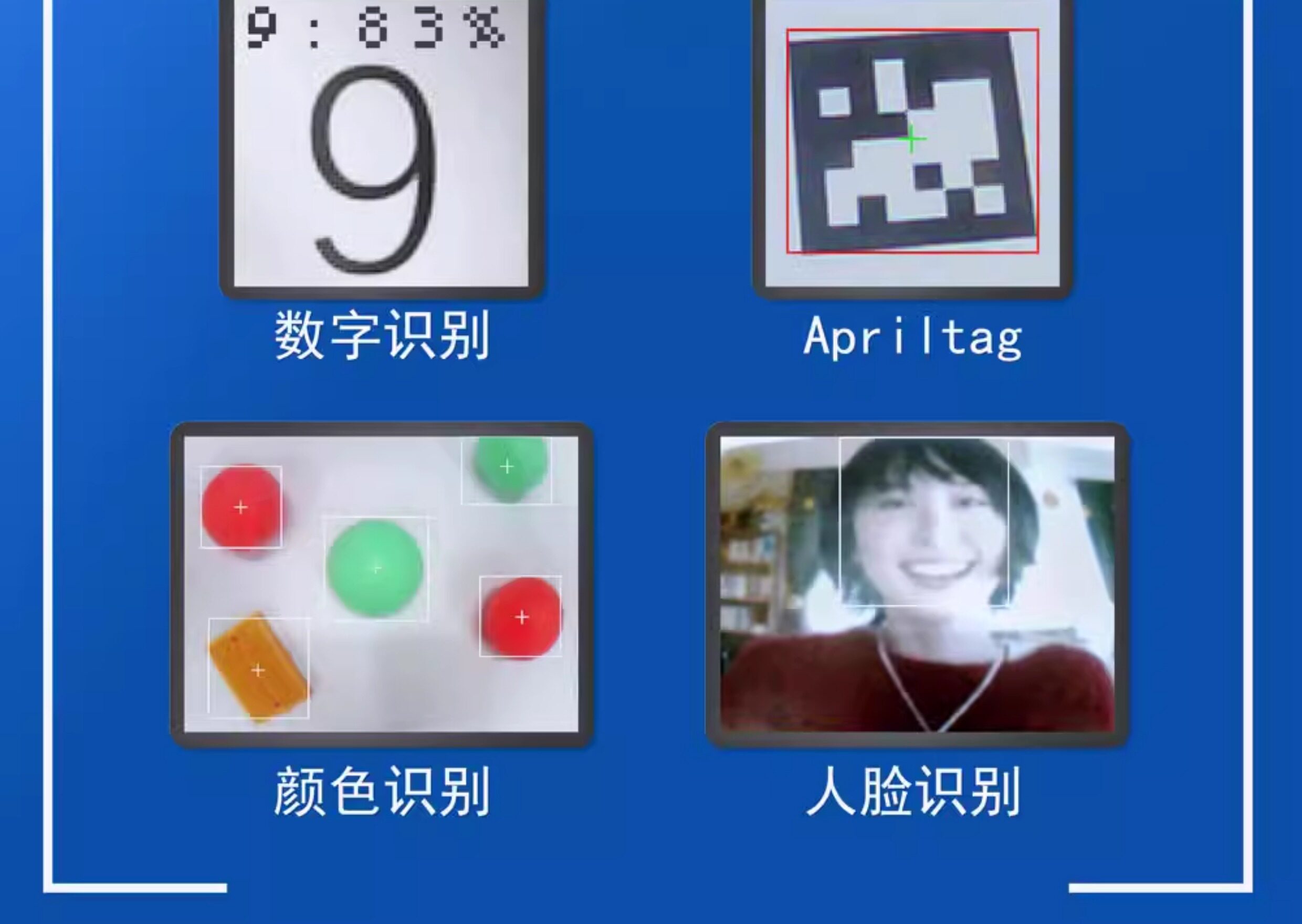

• Security Systems
  • Motion detection

  • Face recognition
• Industrial Automation
  • Quality control

  • Sorting
• Machine vision


選購商品  >Sparkfun原廠 OpenMV LCD Shield (LCD-16777) > 加購價:NT$1,040 數量

• ＊A μSD Card socket capable of 25MB/s reads/writes which allows your OpenMV Cam to take pictures and easily pull machine vision assets off of the μSD card.
            With EMI Filtering and TVS protection
• ＊A SPI bus that can run up to 60Mb/s allowing you to easily stream image data off the system to either the LCD Shield or another microcontroller
• ＊An I2C Bus (up to 1Mb/s), CAN Bus (up to 1Mb/s), and an Asynchronous Serial Bus (TX/RX, up to 20Mb/s) for interfacing with other microcontrollers and sensors
• ＊A 12-bit ADC (3.3V Tolerant)
• ＊Three I/O pins for servo control
• ＊One I/O pin for frame sync/triggering (or servo control)
• ＊An onboard RTC which keeps running when the system is in low-power mode (the system draws less than 30uA in low-power mode)
            One I/O pin for low power wake up
            There is also a pin for device power button ON/OFF support
• ＊Interrupts on all I/O pins (there are 14 I/O pins on the board)
            With EMI Filtering and TVS protection
• ＊A user controllable/dimmable RGB LED
• ＊Another RGB LED for Charging, USB Power, VIN Power indication
• ＊32 MB of external 16-bit SDRAM clocked at 160 MHz for 320 MB/s of bandwidth
• ＊16 MB of program/storage quad SPI flash clocked at 133 MHz in 4-bit SDR mode for 66 MB/s of bandwidth (read speed)
• ＊A 12-bit X/Y/Z accelerometer (2/4/8g) centered underneath the camera module
• ＊Onboard WiFi (a/b/g/n - 11/54/65 Mb/s) and Bluetooth (v5.1 - BR/EDR/BLE) module with a chip antenna
            Option to use a U.FL antenna instead
• ＊Onboard 10/100 Mb/s Ethernet
            Ethernet Jack with PoE support via an external shield
• ＊Strong Cryptographic Authentication Secure Element support via the SE050C1HQ1

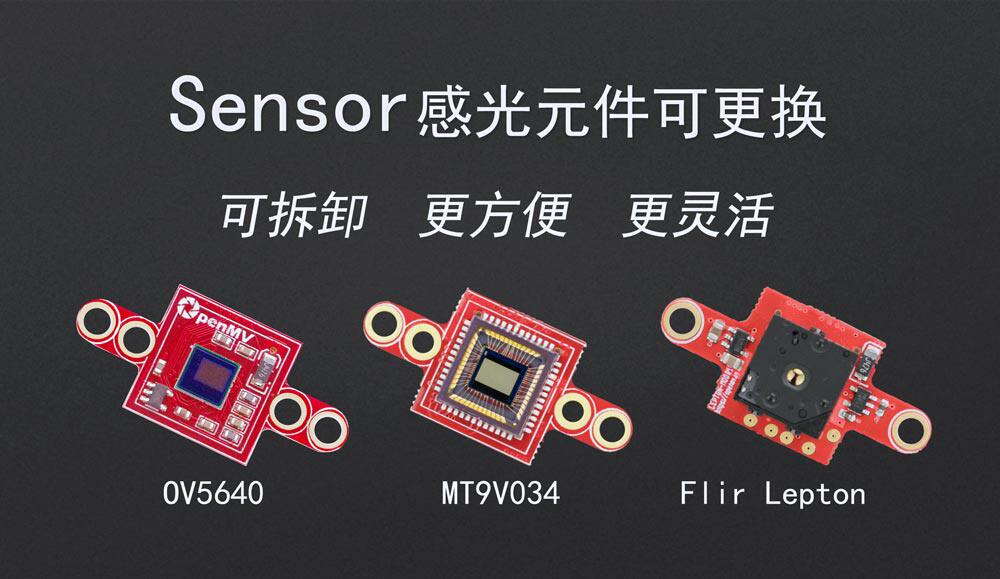

  A removable camera module system allowing the OpenMV Cam RT1062 to interface with different sensors:

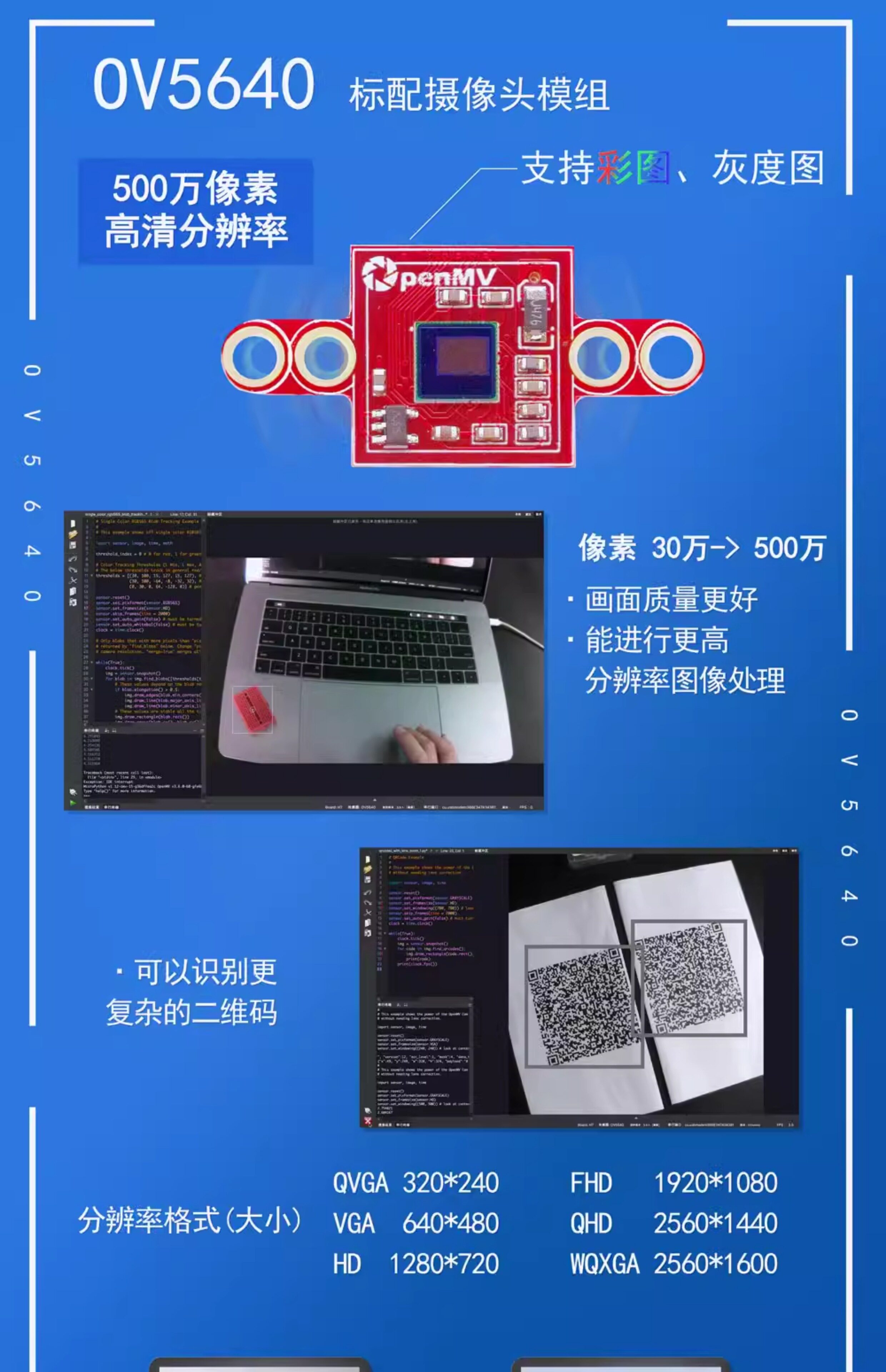

• ＊The OpenMV Cam RT1062 comes with an OV5640 image sensor that is capable of taking 2592x1944 (5MP) images. Most simple algorithms will run about 40 FPS on QVGA (320x240) resolutions and below. If you want to use more specialized lenses with your image sensor you can easily buy and attach them yourself

  A LiPo battery connector compatible with 3.7V LiPo batteries commonly sold online for hobbyist robotic applications with battery charging support via USB
• ＊100 mA Fast Charge Current
• ＊With TVS Protection

  An ARM 10-pin JTAG Header Compatible with SEGGER J-Link Devices for debugging and programming
• ＊With EMI Filtering and TVS protection

  External 5V VIN with reverse supply protection
• ＊With TVS Protection
