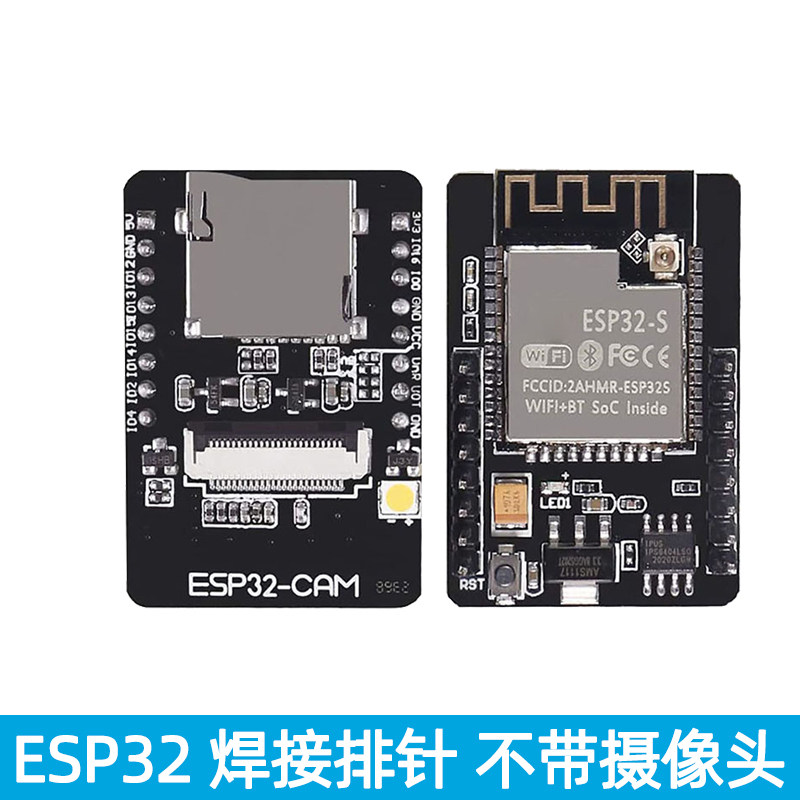

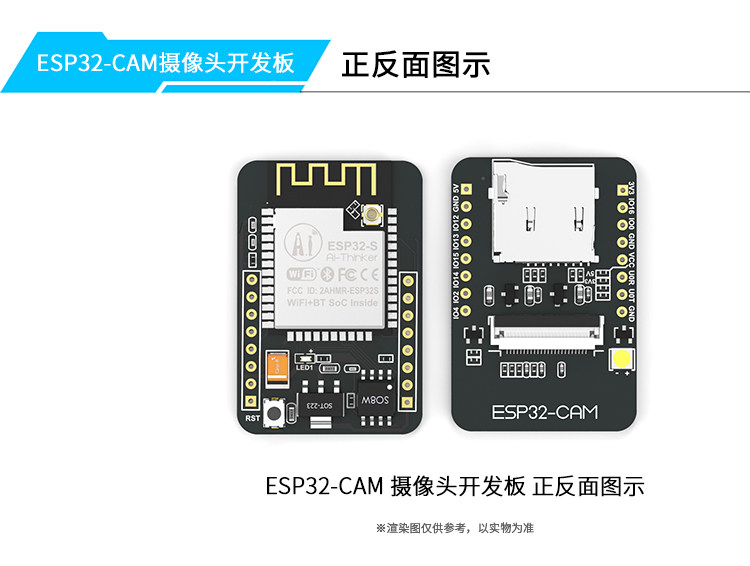

(預購)ESP32-CAM 開發板 WiFi+藍牙模塊 / 串口轉WiFi (含攝像頭 camera)
NT$500
運費NT$50
條碼7346
產品說明

※本產品原廠代理從國外進口,有些交期較長,下訂前請詢問!

ESP32-CAM Development Board 開發版 (with camera帶攝像頭) (113990580)

Description

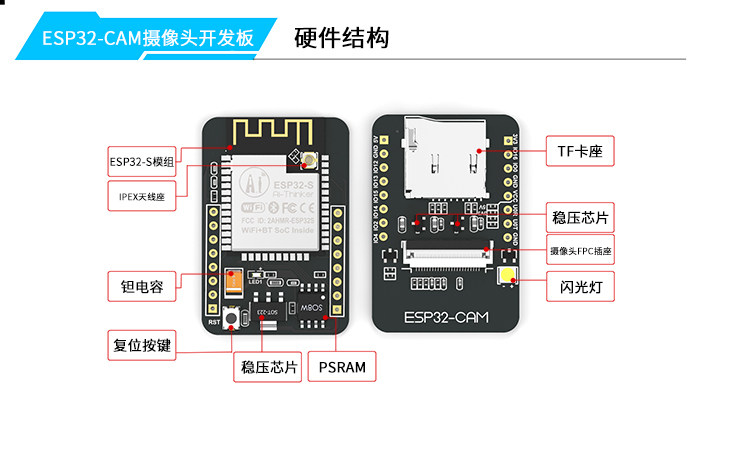

The ESP32-CAM has a very competitive small-size camera module that can operate independently as a minimum system with a footprint of only 27*40.5*4.5mm and a deep sleep current of up to 6mA.

ESP-32CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.

ESP-32CAM adopts DIP package and can be directly inserted into the backplane to realize rapid production of products, providing customers with high-reliability connection mode, which is convenient for application in various IoT hardware terminals.

Features

  • he smallest 802.11b/g/n Wi-Fi BT SoC Module
  • Low power 32-bit CPU,can also serve the application processor
  • Up to 160MHz clock speed,Summary computing power up to 600 DMIPS
  • Built-in 520 KB SRAM, external 4MPSRAM
  • Supports UART/SPI/I2C/PWM/ADC/DAC
  • Support OV2640 and OV7670 cameras,Built-in Flash lamp.
  • Support image WiFI upload
  • Support TF card
  • Supports multiple sleep modes.
  • Embedded Lwip and FreeRTOS
  • Supports STA/AP/STA+AP operation mode
  • Support Smart Config/AirKiss technology
  • Support for serial port local and remote firmware upgrades (FOTA)

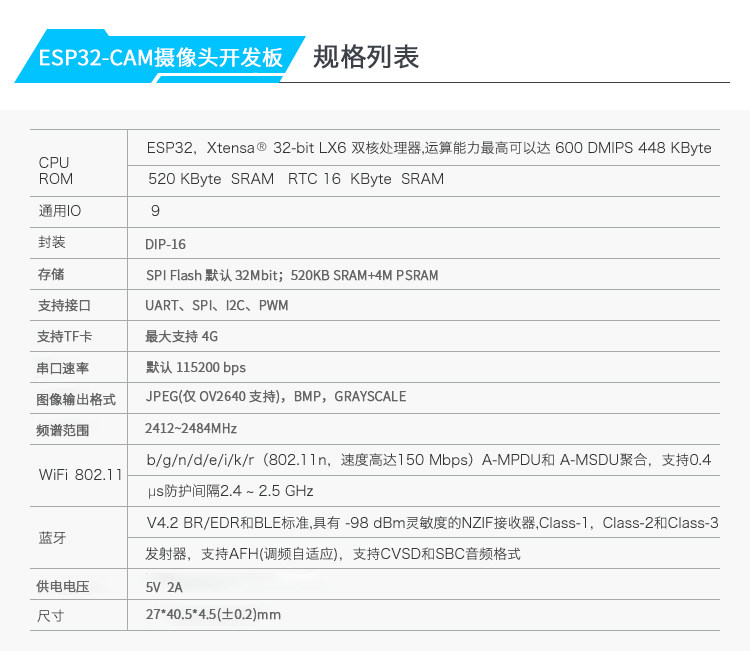

Technical Details

Dimensions 0mm x 0mm x 0mm
Weight G.W 20g     N.W 10g
Battery Exclude
Package DIP-16
SPI Flash Default 32Mbit
RAM 520KB SRAM +4M PSRAM
Bluetooth Bluetooth 4.2 BR/EDR and BLE standards
Wi-Fi 802.11 b/g/n/
Support interface UART、SPI、I2C、PWM
Support TF card Maximum support 4G
IO port 9
UART Baudrate Default 115200 bps
Image Output Format JPEG( OV2640 support only ),BMP,GRAYSCALE
Spectrum Range 2412 ~2484MHz

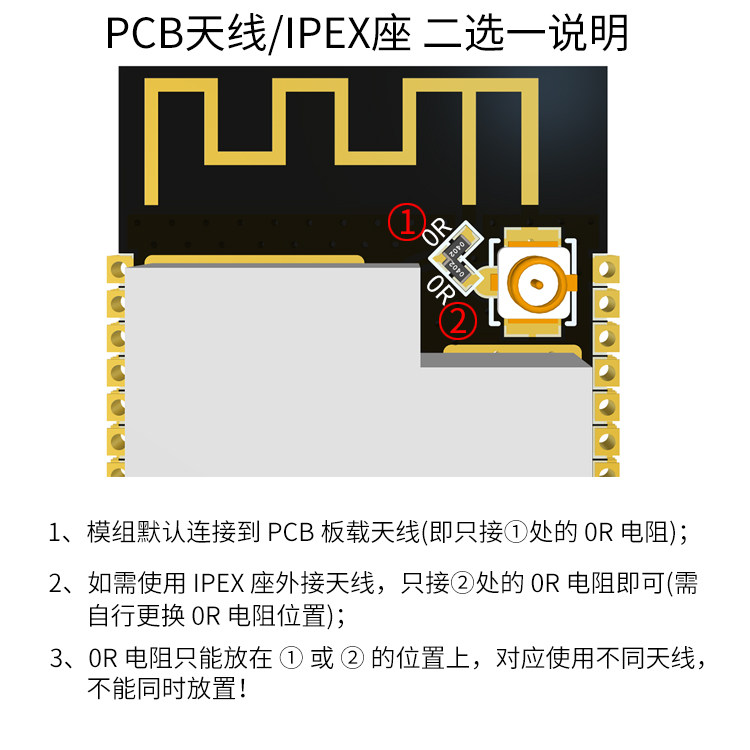

Antenna Onboard PCB antenna, gain 2dBi
Transmit Power 802.11b: 17±2 dBm (@11Mbps); 802.11g: 14±2 dBm (@54Mbps); 802.11n: 13±2 dBm (@MCS7)
Receiving Sensitivity CCK, 1 Mbps : -90dBm; CCK, 11 Mbps: -85dBm; 6 Mbps (1/2 BPSK): -88dBm; 54 Mbps (3/4 64-QAM): -70dBm; MCS7 (65 Mbps, 72.2 Mbps): -67dBm
Power Dissipation Turn off the flash lamp:180mA@5V; Turn on the  flash lamp and turn on the brightness to the maximum:310mA@5V; Deep-sleep: Minimum power consumption can be achieved 6mA@5V; Moderm-sleep: Minimum up to 20mA@5V; Light-sleep: Minimum up to 6.7mA@5V
Security WPA/WPA2/WPA2-Enterprise/WPS
Power Supply Range 5V
Operating Temperature -20 ℃ ~ 85 ℃
Storage Environment -40 ℃ ~ 90 ℃ , < 90%RH

Documents

https://github.com/donny681/ESP32_CAMERA_QR/wiki

? 採用低功耗雙核32位CPU,可作應用處理器

? 主頻高達240MHz,運算能力高達600 DMIPS

? 內置520 KB SRAM,外置4M PSRAM

? 支持UART/SPI/I2C/PWM/ADC/DAC等接口

? 支持OV2640和OV7670攝像頭,內置閃光燈

? 支持圖片WiFi上傳

? 支持TF卡

? 支持多種休眠模式

? 內嵌Lwip和FreeRTOS

? 支持STA/AP/STA+AP工作模式

? 支持Smart Config/AirKiss一鍵配網



? 支持二次開發
