產品說明0
※本產品原廠代理從國外進口，有些交期較長，下訂前請詢問！

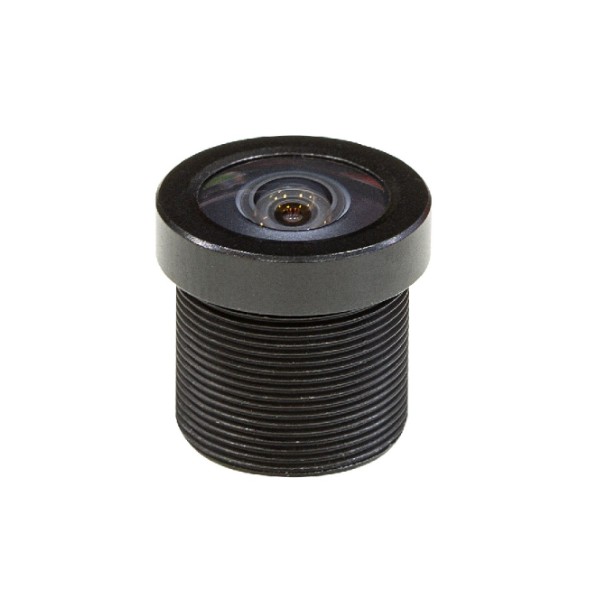

Arducam 1/3" M12 mount 2.3mm Focal Length Lens M30225H10
Arducam 1/3英寸M12卡口2.3mm焦距鏡頭M30225H10
Features:
- Optical Format:1/3”, Effective Focal Length:2.3mm
- 35mm equivalent focal length: 14mm
- FOV on 1/3” sensor(D/H/V): 170°/120°/80°
- HFOV on 1/4” RPi Camera: 105°, F/NO: 2.3
- Mount:M12, Length Holder Height: 13mm
- Size: 14mm x 14mm, Weight: 3g
- 光學格式：1/3英寸，有效焦距：2.3mm
- 35mm等效焦距：14mm
- 1/3英寸傳感器（D / H / V）上的FOV：170°/ 120°/ 80°
- 1/4英寸RPi攝像機的HFOV：105°，F / NO：2.3
- 支架：M12，長度支架高度：13mm
- 尺寸：14mm x 14mm，重量：3g
Package Includes:
- 1pcs Arducam 1/3" M12 mount 2.3mm Focal Length Lens M30225H10
1個Arducam 1/3英寸M12卡口2.3mm焦距鏡頭M30225H10
Note:
- Lens holder NOT included, you could find holder options following.
- Typically lenses with a larger Field of View will require shorter holders, and that means you need to change the lens holder if the lens does not focus at all.
- 不包括鏡架，您可以在下面找到鏡架選項。
- 通常，具有較大視場的鏡頭需要較短的鏡架，這意味著如果鏡頭根本無法對焦，則需要更換鏡架。
